The iSF is Shop Floor Ready!
Take control of your measurement challenges with the iSF
The iSF is a shop floor-ready CMM designed to make precision measurement effortless from day one. Forget complex setups, long training, and production downtime. iSF is fully operational within hours, and its intuitive interface empowers operators to measure confidently from the start.
Powered by zero-maintenance linear motors, iSF eliminates compressed air, lubrication points, and unexpected downtime. Its rigid portal construction and movable granite table deliver stability and accuracy while providing easy access for both manual and robotic loading.
With one-click program execution, iSF makes measurement smooth, fast, and repeatable. Whether you’re inspecting a single prototype or running high-volume production, the included TouchDMIS CMM measurement software delivers results that are easy to understand for everyone.
Built for real-world environments, iSF integrates thermal compensation, high-precision guideways and 0.1μm resolution linear scales, for consistent accuracy on the shop floor. Expand the capability of your iSF even further with optional upgrades such as active vibration isolation, automatic stylus cleaning, tool changers, status lights, and part recognition.

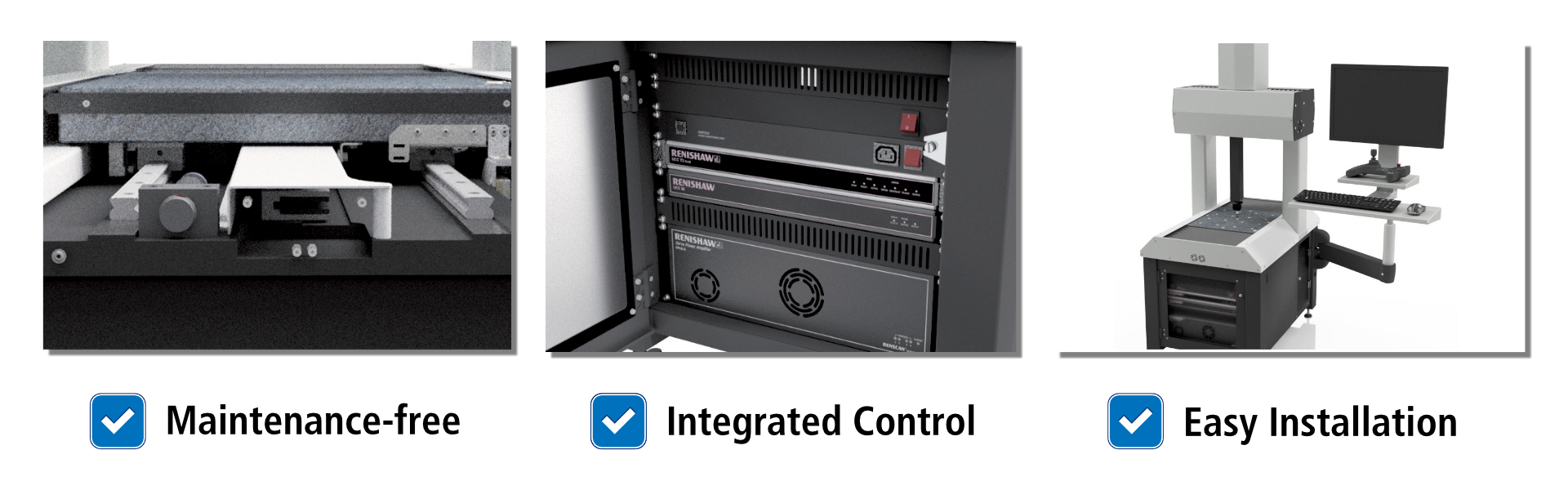

Maintenance-free
With a moving Granite Table and a high-rigidity Steel Portal, the iSF offers a low-wear, rigid CMM design.
Easy Installation
One cable for easy plug and play installation. NO AIR REQUIRED.
Integrated Control
Integrated Renishaw controller, protected by a transparent door.
Monitor & Accessories
Optional left and right side arm mounting for monitor, keyboard, and controller.

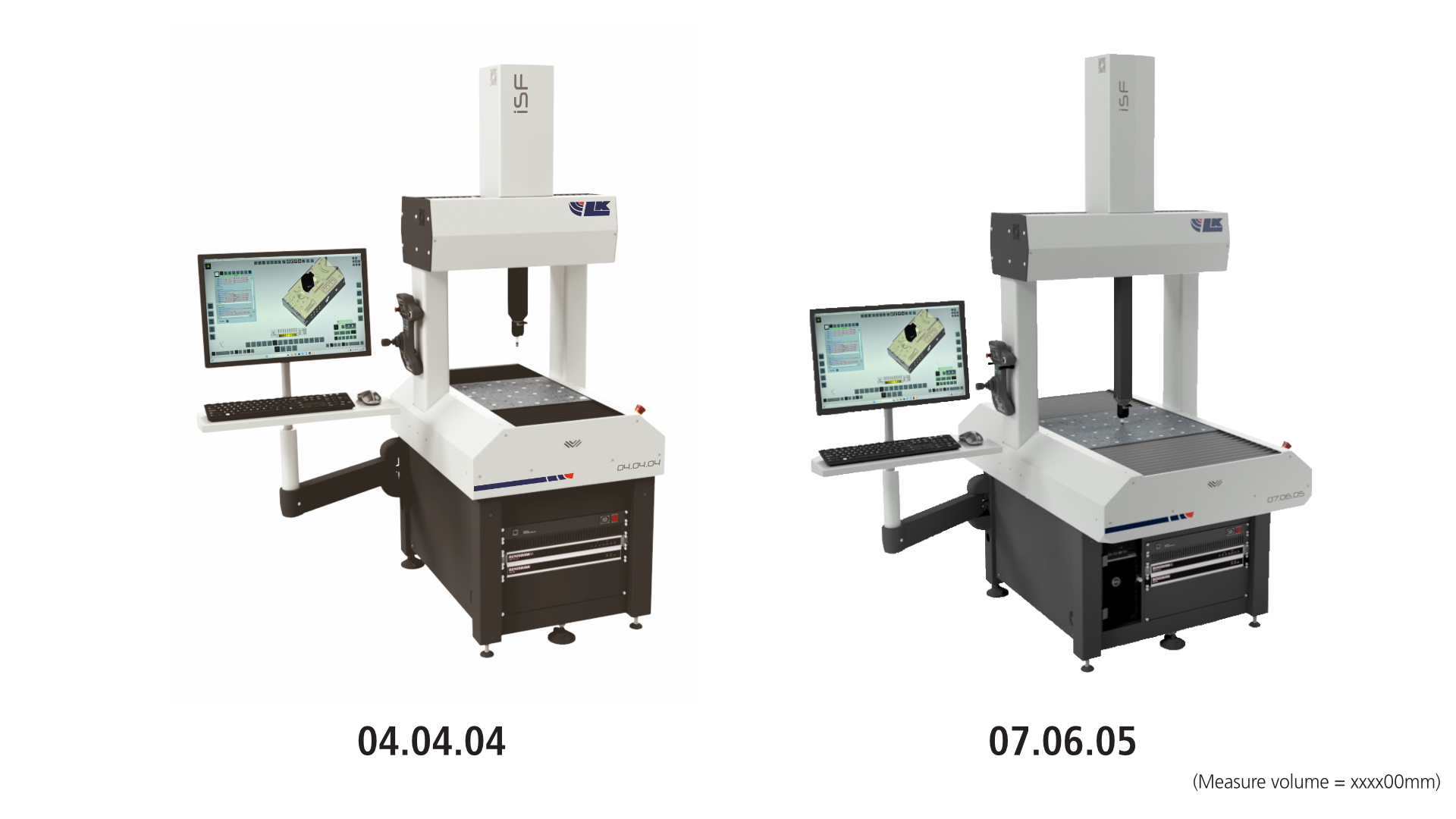

Sizes Available
04.04.04 & 07.06.05
(Measure volume = xxxx00mm)
Performance
Volumetric Accuracy – from 2.2 µm + L/333
Repeatability – from 1.6 µm
Probing Accuracy – from 2.2 µm
Velocity – from 800 mm/s
Acceleration – from 2,000 mm/s²
Probing Systems
Manual Heads – MH20i & PH6M
Motorized Heads – PH10M & PH20
Touch Trigger Probe – TP20
Scanning Probe – SP25M
Interested in the iSF?
Call (810) 263-6100 or email sales.us@lkmetrology.com for more information.
Click Here – to learn more about the iSF and other products from LK Metrology
