BRIDGE Type CMM
The Bridge product family’s bridge and quill design provide a thermally stable and ultra-stiff structure for long lasting accuracy and structural stability. This makes our multi-sensor ready, pneumatically-raised CMMs some of the most accurate and durable CMMs on the market.
ALTO
Optimized metrology for small parts
ALTO provides the best balance of price and performance for your cost, accuracy and throughput needs.
Optimized for the new challenges of dimensional quality control, where parts are becoming smaller, designs more complex and design limits are narrowing. ALTO is ideal for production areas and quality control rooms where space is limited.
ALTO is a compact CMM with ingenious space-saving features such as the half-gantry design with no over-hanging guideways, fully integrated electronics, retracting PC screen arm and open access from three sides for easy part loading. Supplied with automated stylus changing as standard, ALTO is available with a standard motorized indexing probe head, or the latest high-performance 5-axis probe system for maximum efficiency.
Additionally ALTO employs high-tech aluminum alloy for the structure and guideways of its moving half-gantry. This cost-effective materials technology provides the stiffness needed for accuracy, while keeping ALTO’s moving mass to a minimum for high-speed measurement.
- Aluminium half-gantry design with micro-machined guideways for precision and hard anodization for resistance to wear and corrosion
- Air bearings with large bearing spread for dynamic stability and a low maintenance, self-cleaning design
- Smooth, exact motion control friction drives enabling zero hysteresis, low maintenance
- 0.1µm encoders – high resolution optical scale system for accuracy
- Optional manufacturing environment-friendly anti-vibration features
- Temperature compensation for quality labs and workshop environments
- Integrated screen and keyboard arm and optional controller mounting
Sizes Available (measuring volume = n00 mm)
6.5.5 |
Accuracy
Volumetric Accuracy | From 2.5 µm + 3.0 L/1000 |
Repeatability | From 2.3 µm |
Probing Accuracy | From 2.5 µm |
Velocity | From 500 mm/sec |
Acceleration | From 1500 mm/sec2 |
Probing Options
Tactile Probes
|
|
Multi-sensor
|
Scanning
|
Touch Triggers
|
|
ALTERA C
Small-size Bridge CMM
Ideal first step into automated inspection.
ALTERA C is ideal for all types of precision metrology applications in quality labs, production areas and technology centers. With easy-to-use software and versatile probing options, ALTERA C is ideal for quality professionals taking their first steps in building up an automated inspection capability.
Faster and more precise than similar sized CMMs, ALTERA C provides the performance and flexibility needed to keep pace with a wide range of series product related metrology tasks. With easy-to-use software and choice of sensor technology, including touch trigger, scanning and non-contact, ALTERA C provides a future-proof platform ready for additional capacity and new technology.
- Compact footprint
- High accuracy measurement and efficient throughput
- Integrated technology with optional monitor & keyboard
LK Metrology ceramic technology CMM is guaranteed to maintain its original accuracy specification for a period of 10 years.
Under the terms provided hereunder and detailed in the prevailing sales contracts and documents. Applies to LK Metrology “Ceramic Technology” branded CMMs only.
Sizes Available (measuring volume = n00 mm)
7.7.5 | 10.7.7 | 12.9.7 |
10.7.5 | 15.9.7 |
Accuracy
Volumetric Accuracy | From 1.7 µm + L/333 |
Repeatability | From 1.5 µm |
Probing Accuracy | From 1.7 µm |
Velocity | From 720 mm/s |
Acceleration | From 1,900 mm/s2 |
Probing Options
Tactile Probes
|
|
|
|
Multi-sensor
|
|
Touch Triggers
|
|
Laser Scanning
|
|
|
|
ALTERA C HA
Small-size, High-accuracy Bridge CMM
Optimized precision for tight tolerance parts.
Master your daily metrological challenges with maximum precision, ALTERA C HA (high accuracy) delivers the best possible results for every measurement challenge, helping you to meet those ever increasing demands for quality improvement.
To achieve the best possible measuring results within the shortest possible time requires a perfectly balance system. ALTERA C HA is the best combination of precision measuring machine, latest sensor technology and up-to-date software. Manufacturers can tailor the capabilities of ALTERA C HA to align with their needs for automated inspection using options and accessories.
- Compact footprint
- High accuracy measurement and efficient throughput
- Integrated technology with optional monitor & keyboard
LK Metrology ceramic technology CMM is guaranteed to maintain its original accuracy specification for a period of 10 years.
Under the terms provided hereunder and detailed in the prevailing sales contracts and documents. Applies to LK Metrology “Ceramic Technology” branded CMMs only.
Sizes Available (measuring volume = n00 mm)
7.7.5 | 10.7.7 | 12.9.7 |
10.7.5 | 15.9.7 |
Accuracy
Volumetric Accuracy | From 1.7 µm + L/410 |
Repeatability | From 1.5 µm |
Probing Accuracy | From 1.9 µm |
Velocity | From 548 mm/s |
Acceleration | From 1,392 mm/s2 |
Probing Options
|
|
Touch Triggers
|
Laser Scanning
|
|
|
|
ALTERA S
Medium-size Bridge CMM
Multi-purpose capabilities tailored to your workflow and process.
ALTERA S makes it easier and faster to measure the most complex of parts in a single CMM set-up. Multi-sensor technology combines the precision of tactile probing, high-speed measurement of scanning and high-density of non-contact inspection, to extending the CMM application scope to new materials and geometries in-line with your evolving requirements.
ALTERA S is ideal for small-to-medium-sized manufacturers needing to increase their automated metrology capabilities with multi-purpose measurement capabilities tailored to the accuracy, throughput and workflow of your quality processes. Multi-sensor ready technology allows you to expand the capability of your CMM as your requirements change, and without expensive controller upgrades.
- Cutting-edge design built for flexibility
- Advanced multi-sensor ready technology
- Innovative folding guideway panel design
LK Metrology ceramic technology CMM is guaranteed to maintain its original accuracy specification for a period of 10 years.
Under the terms provided hereunder and detailed in the prevailing sales contracts and documents. Applies to LK Metrology “Ceramic Technology” branded CMMs only.
Sizes Available (measuring volume = n00mm)
10.7.6 | 10.10.8 |
15.7.6 | 12.10.8 |
15.10.8 | |
20.10.8 |
Accuracy
Volumetric Accuracy | From 1.8 µm + L/400 |
Repeatability | From 2.0 µm |
Probing Accuracy | From 1.3 µm |
Velocity | From 760 mm/s |
Acceleration | From 2,290 mm/s2 |
Probing Options
Tactile Probes
|
|
Multi-sensor
|
Scanning
|
Touch Triggers
|
|
Laser Scanning
|
|
|
|
ALTERA M
Large-size Bridge CMM
Addresses the widest range of quality control requirements.
ALTERA M provides superior multi-sensor technology, with the speed and flexibility needed to measure a range of parts in a fast-paced setting.
This high-performance multi-sensor metrology solution, for series production and shopfloor environments, offers automation solutions that fit seamlessly around your processes to provide 24/7 quality control and remote access to CMM quality data from any internet-enabled device. Ready to meet your expanding inspection needs and set for your future requirements as technology evolves, ALTERA M provides dependable measurement results across all manufacturing environments.
- Designed for high-speed tactile probe & laser scanning applications
- Wide range of sizes available
- Preferred choice for automotive & aerospace OEMs
LK Metrology ceramic technology CMM is guaranteed to maintain its original accuracy specification for a period of 10 years.
Under the terms provided hereunder and detailed in the prevailing sales contracts and documents. Applies to LK Metrology “Ceramic Technology” branded CMMs only.
Sizes Available (measuring volume = n00 mm)
8.7.6 | 10.10.8 | 15.12.10 | 20.15.10 | 20.15.12 | 20.15.15 | 25.20.15 |
10.7.6 | 15.10.8 | 20.12.10 | 25.15.10 | 25.15.12 | 25.15.15 | 30.20.15 |
20.10.8 | 25.12.10 | 30.15.10 | 30.15.12 | 30.15.15 | 35.20.15 | |
25.10.8 | 30.12.10 | 35.15.10 | 35.15.12 | 35.15.15 | 40.20.15 | |
40.15.15 | 50.20.15 | |||||
60.20.15 |
Accuracy
Volumetric Accuracy | From 1.4 µm + L/375 |
Repeatability | From 1.4 µm |
Probing Accuracy | From 1.2 µm |
Velocity | From 830 mm/s |
Acceleration | From 2,510 mm/s2 |
Probing Options
Tactile Probes
|
Multi-sensor
|
Scanning
|
Touch Triggers
|
|
Laser Scanning
|
|
|
|
ALTERA SCANtek5
Maximum Productivity
Advanced 5-axis multi-sensor technology for unrivaled performance.
Ten times more productive than its closest rival, LK Metrology’s SCANtek5 technology has boosted measurement throughput, shortened production lead times and provided a complete dimensional insight for manufacturers of precision parts and series production.
Unprecedented measuring speed, the flexibility of multi-sensor technology and optimized 5-axis metrology have boosted measurement throughput, shortened production lead times and provided a more complete awareness of product conformance.
Combining the benefits of ceramic CMM technology and the most advanced 5-axis multi-sensor system, ALTERA SCANtek provides five interchangeable probe technologies, including tactile scanning, touch-trigger, surface finish, non-contact vision and ultrasonic probes to enable automated selection of the most advantageous probing technology while maximizing the advantages of 5-axis measurement, infinite probe head positioning and long probe assemblies.
- Revolutionary 5-Axis multi-sensor technology
- Ultra fast scanning
- Infinite head positioning

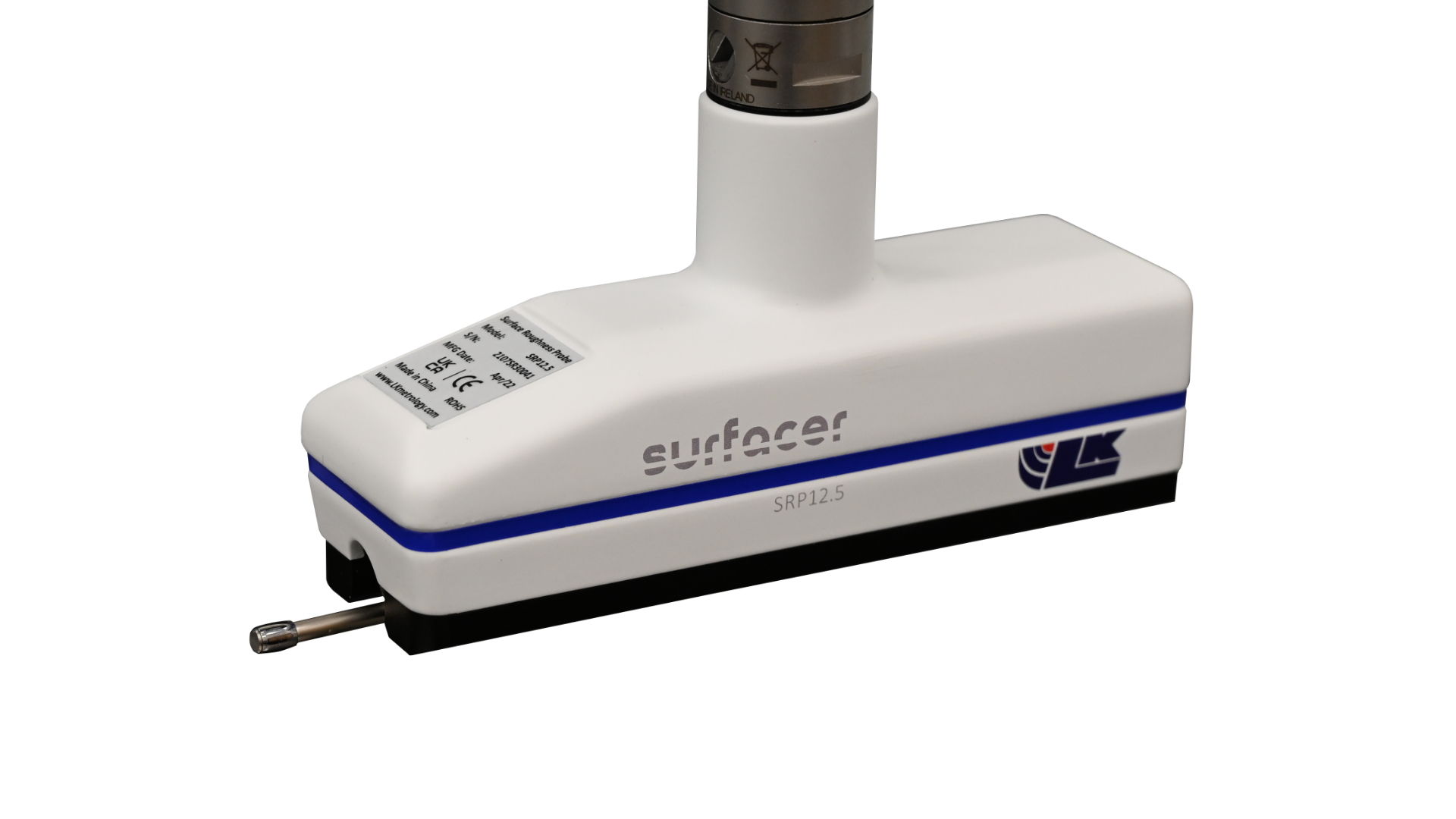

- Surface finish analysis
LK Metrology ceramic technology CMM is guaranteed to maintain its original accuracy specification for a period of 10 years.
Under the terms provided hereunder and detailed in the prevailing sales contracts and documents. Applies to LK Metrology “Ceramic Technology” branded CMMs only.
Sizes Available (measuring volume = n00 mm)
Altera M
8.7.6 | 10.10.8 | 15.12.10 | 20.15.10 | 20.15.12 | 20.15.15 | 25.20.15 |
10.7.6 | 15.10.8 | 20.12.10 | 25.15.10 | 25.15.12 | 25.15.15 | 30.20.15 |
20.10.8 | 25.12.10 | 30.15.10 | 30.15.12 | 30.15.15 | 35.20.15 | |
25.10.8 | 30.12.10 | 35.15.10 | 35.15.12 | 35.15.15 | 40.20.15 | |
40.15.15 | 50.20.15 | |||||
60.20.15 |
Altera SL
8.7.6 | 10.10.8 | 15.12.10 | 25.15.10 | 20.15.15 | 25.20.15 |
10.7.6 | 15.10.8 | 20.12.10 | 25.15.15 | ||
15.7.6 | 20.10.8 | 25.12.10 |
Accuracy
Altera M | Altera SL | |
Volumetric Accuracy | From 1.4 µm + L/375 | From 1.5 µm + L/400 |
Repeatability | From 1.4 µm | From 0.7 µm |
Probing Accuracy | From 1.2 µm | From 0.9 µm |
Scanning Accuracy | From 3.0 µm @ 90s | From 3.0 µm @ 48s |
Velocity | From 830 mm/s | From 850 mm/s |
Acceleration | From 2,510 mm/s2 | From 1,400 mm/s2 |
Probing Options
ALTERA SLHA
Ultra-Accurate Bridge CMM
Sub-micron accuracy for exacting levels of precision.
Every aspect of the ALTERA SLHA has been optimized around the desire for ultra-accurate measurements. Metrology institutes and calibration laboratories trust the performance of the raised guideway design and flexibility of the ceramic technology moving bridge for a variety of research and industrial metrology applications, and wherever precision components demand exacting measurements.
The ALTERA SLHA CMM is the most advanced high accuracy system on offer from LK Metrology today, and is among the highest accuracy CMMs available on the market. The advanced multi-sensor ready technology optimizes the CMM throughput and provides the opportunity to broaden the application scope to new materials and components as customer needs change.
LK Metrology ceramic technology CMM is guaranteed to maintain its original accuracy specification for a period of 10 years.
Under the terms provided hereunder and detailed in the prevailing sales contracts and documents. Applies to LK Metrology “Ceramic Technology” branded CMMs only.
Sizes Available (measuring volume = n00 mm)
8.7.6 | 10.10.8 | 15.12.10 |
10.7.6 | 15.10.8 | 20.12.10 |
15.7.6 | 20.10.8 | 25.12.10 |
25.10.8 |
Accuracy
Volumetric Accuracy | From 0.7 µm + L/600 |
Repeatability | From 0.5 µm |
Probing Accuracy | From 0.9 µm |
Velocity | From 310 mm/s |
Acceleration | From 560 mm/s2 |
Probing Options
Multi-sensor
|
Scanning
|
|
Touch Triggers
|
|
Laser Scanning
|
|
|
|
MAXIMA
Extra-large Bridge CMM
Accurate measurement of large and heavy workpieces.
The Maxima range of solutions has a proven pedigree within aerospace, large-scale commercial vehicle applications and manufacturers of large performance critical components.
The unique LK Metrology, proprietary design, low gap high-efficiency air bearings and zero hysteresis drive systems ensure premium quality, high accuracy and throughput of Maxima CMMs to meet the needs of large-scale manufacturers.
- Very large-scale metrology applications
- Bonded ceramic materials
- High performing beam and spindle construction
- Greater resistance to time, wear and temperature variations
- Touch-trigger, contact and non-contact laser scanning
LK Metrology ceramic technology CMM is guaranteed to maintain its original accuracy specification for a period of 10 years.
Under the terms provided hereunder and detailed in the prevailing sales contracts and documents. Applies to LK Metrology “Ceramic Technology” branded CMMs only.
Sizes Available (measuring volume = n00 mm)
30.20.20 | 30.25.15 | 30.25.20 |
40.20.20 | 40.25.15 | 40.25.20 |
50.20.20 | 50.25.15 | 50.25.20 |
60.20.20 | 60.25.15 | 60.25.20 |
Accuracy
Volumetric Accuracy | From 3.5 µm + L/350 |
Repeatability | From 3.5 µm |
Velocity | From 545 mm/s |
Acceleration | From 480 mm/s2 |
Probing Options
Multi-sensor
|
|
Scanning
|
Touch Triggers
|
|
Laser Scanning
|
|
|
|
CMM ACCESSORIES
gantry
LK Metrology’s gantry solutions are designed to measure larger parts that wouldn’t be practical to measure using other types of CMMs. This type of CMM presents practical advantages: low maintenance costs, a contaminant-optimized design, and the ability for operators to walk into the inspection area to physically check the assembly during operation.
AEROS
The ideal measurement solution for large precision components
The AEROS Series of Gantry style CMMs are an innovative mechanical design that ensures durable metrology, measurement data stability and low maintenance and calibration costs. The AEROS features aluminum alloy Z-axis spindles and a “Single Read” scale system on the X-axis.
The AEROS S models offer medium to large Gantry style metrology for improved structural stability and adaptability.
The AEROS P gantry systems are also designed to inspect large, geometrically accurate components, such as marine engines, transmissions, large transportation vehicles, large parts and tools with free-form and sculptured surfaces. The AEROS P CMMs work particularly well in aerospace, strategic and energy settings. The CMM’s structure, “Dual Drive” motion and “Dual Read” positioning system on the X-axis beams limit structural deformations during movement, ensuring excellent metrological performance.
- Ideal for large precision components
- Uses the latest innovations in aluminum and steel CMM guideway technology
- Open design is extremely adaptable, providing full access to the work area
Sizes Available (measuring volume = n00 mm)
AEROS30.20.10 up to 60.25.18 |
AEROS S40.20.20 up to 60.30.20 |
AEROS P50.25.20 up to 60.35.25 |
Accuracy
AEROS | AEROS S | AEROS P | |
Volumetric Accuracy | From 4.3 µm + 4L/1000 | From 4.3 µm + 5L/1000 | From 7.0 µm + 8L/1000 |
Velocity | From 500 mm/s | From 530 mm/s | From 530 mm/s |
Acceleration | From 1200 mm/s2 | From 800 mm/s2 | From 800 mm/s2 |
Probing Options
Tactile Probes
|
Multi-sensor
|
Laser Scanning
|
|
|
|
ULTRA
Ultra: Very-large-scale measurement for very-large-scale precision engineering
The Ultra range of solutions has a proven pedigree within aerospace airframe and large blades inspection, land transportation, large engine and transmission components, large scale gears, power generation, large turbines, maritime engine and propellers, and locomotive components.
Made for very-large-scale measurement applications the LK Metrology Ultra CMM Series, with its elevated guideway design, offers among the most flexible solutions in the industry today for 3D dimensional inspection.
The Ultra range offers three machine design variants, the monolithic design with an integrated work-table, the classic gantry design, and the proven guideways on U-foundation design which can be implemented as above ground, ground level, or, in sub-ground foundation pit installations. All variants are based upon a common modular design concept providing high performance, reliability and an easy to maintain measuring system.
Laser Scanning
|
|
|
|
horizontal
Horizontal CMMs are designed for elongated parts and assemblies. LK Metrology produces a durable range of horizontal CMMs for every budget and accuracy requirement.
HC-90
Bridge CMM accuracy with Horizontal flexibility
Geometric stability at high speed, and resistance to harsh environments are difficult to achieve using aluminum or cast-iron guideways with mechanical bearings. The HC-90’s ceramic column runs on LK Metrology’s proprietary air suspension system to deliver Bridge-like accuracy for larger components.
- High-quality 96% Alumina Ceramic for optimal speed, stiffness and long-lasting measurement accuracy
- Designed for production-line integration
- Flexible positioning and articulation
- The option to install it practically anywhere, even in extreme operating conditions
- Three design options
Alumina Ceramic
LK Metrology use high quality 96% Alumina Ceramic due to its exceptional stiffness and thermal characteristics. Alumina Ceramic is 330% stiffer and 4x more thermally stable than aluminum and provides the rigidity that’s paramount in providing the rser with a high accuracy coordinate measuring machine.
Stress relief in any structure causes it to change shape. In a CMM, this means continual dimensional instability. Using stress-free Ceramic guideways, as opposed to a continually stress relieving aluminum fabricated assemblies, assures long lasting confidence in measurement accuracy and less requirement for machine verification saving the user time and money.
Alumina Ceramic is approximately 50% lighter than granite while steel is 200% stiffer and 2x more thermally stable than aluminum. Increased stiffness allows you to increase measurement speed for greater throughput across all temperature ranges with no loss of accuracy.
Sizes Available (measuring volume = n00 mm)
HC-90TTable-mounted 10.4.6 up to 50.16.20 |
HC-90RSingle-arm guideway 40.16.20 up to 100.16.30 |
HC-90TRTwin-arm guideway 40.16.20 up to 100.16.30 |
HC-90WTRFloor-integrated twin guideway 45.16.20 up to 100.16.30 |
Accuracy
T | R/TR/WR/WTR | |
Volumetric Accuracy | From 1.9 µm + L/250 | From 17 µm + 3L/200 |
Repeatability | From 1.9 µm | From 6 µm |
Velocity | From 850 mm/s | From 633 mm/s |
Acceleration | From 3,008 mm/s2 | From 2,106 mm/s2 |
Probing Options
Multi-sensor
|
|
Laser Scanning
|
|
|
|
HD-90
Aluminum Horizontal CMM
An advanced design for cost-effective dimensional inspection of large components typical of the automotive, land transport and heavy industries.
- Single or double arm configurations designed for production-line integration
- Air bearings on the YZ axes,
- Double recirculating bearing guideways on the X-axis
- Optional cast iron work-plates and loading/unloading systems
- Protective covers to ensure thermal and contaminant insulation
- Simplified manual or automated part loading and unloading
Sizes Available (measuring volume = n00 mm)
40.16.20 | 40.16.25 | 80.16.30 |
50.16.20 | 50.16.25 | |
60.16.20 | 60.16.25 | |
80.16.20 | 80.16.25 | |
120.16.25 |
Accuracy
Volumetric Accuracy | From 14 µm + 18L/1000 |
Velocity | From 580 mm/s |
Acceleration | From 1,500 mm/s2 |
Probing Options
Multi-sensor
|
|
Laser Scanning
|
|
|
|
LY-90
LY-90T – Table-mounted horizontal CMM
The LY-90T is a table CMM designed for part accessibility. Developed specifically for car-body and sub-assembly quality inspection applications, the LY-90T is the perfect solution for sheet-metal and plastic component metrology.
- Console-mounted horizontal arm
- Measurement system with linear optical transducers
- Control of movement through servo motors
- Air bearings on the Y-Z axes and precision guideways on the X-axis
- Mechanical carrier counterbalance with safety brake
- Optional cast iron work-plates
LY-90R/TR – Runway-based horizontal CMM
The LY-90R is a runway-based CMM designed for part accessibility. Developed specifically for automotive, land transport and heavy industry quality inspection applications, the LY-90R can be installed on a pneumatic vibration isolation system for use in production environments, without the need for dedicated foundations for the system. Offered in Rail (R) and Twin-Rail (TR) configurations.
- Runway horizontal arm CMM
- Measurement system with linear optical transducers
- Control of movement through servo motors
- Air bearings on the Y-Z axes, precision guideways on the X-axis
- Mechanical carrier counterbalance with safety brake
- Optional cast iron work-plates
Accuracy
T | R/TR | |
Volumetric Accuracy | From 10 µm + 18L/1000 | From 10 µm + 15L/1000 |
Velocity | From 520 mm/s | From 520 mm/s |
Acceleration | From 850 mm/s2 | From 850 mm/s2 |
Probing Options
Multi-sensor
|
Laser Scanning
|
|
|
|
SOFTWARE
LK Metrology offers a range of multi-sensor CMM software packages to control and report measurement data.
CAMIO
CAMIO 2024 R1 Available Now!
Full-Featured Metrology Software for Industry 4.0
CAMIO has core competencies that provide real enhancements to benefit each stage of a production process. By leveraging these benefits to improve product quality, reduce cost and accelerate lead times, manufacturers gain a real and measurable competitive advantage. Whether a small company with one CMM or large organization with multiple installations, CAMIO provides a CMM software solution to match your business requirements and safeguard your investment.
Software Interface
CAMIO has in-depth programming, analysis and reporting capabilities for a wide range of CMM applications – all features are tightly integrated into a single platform using proven technology and the latest developments in CMM software. CAMIO encourages users to drive the inspection process graphically, everything from part alignment, feature inspection and dimensional tolerancing is much faster and more intuitive when users work with CAMIO’s advanced user interface. Novice users find the step-through approach to CMM inspection particularly easy to master and quickly migrate to the more progressive features of the software. More experienced users appreciate the advanced functionality and high-level DMIS language with conditional program execution and user macros.
Programming
CAMIO provides a powerful suite of graphical programming tools for 3D measurement – including online and offline programming, CAD and non-CAD applications and multi- sensor technology. CAMIO’s advanced feature-based and point cloud- based programming routines simply complex inspection tasks by linking functions and applying specialized measurement sequences – from manual non-CAD programming to advanced 3D multi-path scanning methods using CAD.
Scanning Probes
Scanning probes are ideal for high accuracy profile and form measurement, CAMIO programming functionality includes:
- Feature scan
- Section scan
- Offset edge
- Data filters
- Feature algorithms
- Sampling frequency
Laser Scanners
Laser scanners are used for freeform parts and semi-ridged materials, CAMIO programming functionality includes:
- Feature measurement
- Point-cloud simulation
- 3D continuous scanning
- Field-of-view simulation
- Laser line setting
- Filters and meshing
Probe Builder
CAMIO includes a library of accessories for defining probe assemblies.
Teach & Learn Programming
CAMIO Teach & Learn allows programmers to conveniently update programs online, and create new programs for non-CAD applications using the CMM handbox.
Reporting
CAMIO enables manufacturers to analyze measurement data and share meaningful reports across multiple platforms – while keeping quality records safe for future reference. CAMIO provides a flexible inspection reporting solution to fit around your current process, while providing new possibilities.
Report Content
- GD&T flyouts
- Output table
- Form plots
- Color deviation scale
- Multiple views per page
- CAD model or digital image
- Text box
- Customer logo
- Page header and footer
- Section profile
Program Editor
CAMIO gives you the freedom to generate programs using the program- ming technique you prefer – online and offline using CAD, or teach and learn using the CMM handbox.
CAMIO provides the flexibility of different programming styles and two program editors – an easy to use block view of inspection objects with familiar drag & drop capability, and a more powerful DMIS editor for in-depth programming – both support native DMIS programs and are 100% compatible.
To safeguard your investment in inspection programs, CAMIO’s program interoperability ensures forward compatibility of your CMM programs. Allowing you to migrate from older versions of software including 3rd party software, and upgrade your hardware without having to rewrite your DMIS programs.
High-Level Language
CAMIO high-level commands extend the capability of your CMM program beyond inspection – with advanced functions including conditional program execution based on variable parameters such as measurement results, operator input and external data.
Automation
CAMIO automation software provides a modular solution for CMM automation – with options to choose the level of CMM automation capability based on the application and setting.
Inline CMM Automation
In-line CMM automation allows manufacturing cells to increase product quality and production efficiency. The CMM is fully integrated in the cell with all sequencing managed by the cell control system and CAMIO8 automation software.
- Rapid detection of process variation enables corrective actions in real-time while maintaining the flow of production.
- Automatic monitoring of the manufacturing cell for a quick response should the unexpected occur.
- Personnel and equipment safe-gaurded by presence detection devices and other safety equipment.
Stand-alone CMM Automation
Stand-alone CMM automation increases utilization and makes the CMM an easy to use quality tool for production operators. The CMM is controlled by an operator with support from CAMIO automation software.
- Intuitive program menu allows users with minimal training to operate the CMM safely.
- Optimization of part loading and program execution keeps the CMM measuring efficiently and with minimal delays between tasks.
- Running the CMM is made easy by input devices such as bar code readers and RFID tags for part identification.
CAMIO 2024 R1 Available Now, click here for more information!
TouchDMIS
Metrology Powered with a Touch of Simplicity
TouchDMIS is the full-feature dimensional metrology software developed to offer maximum user-experience. With its innovative and unique user interface that gives up the old-fashioned Windows style, TouchDMIS brings into the metrology industry the modern touch functionality that the CMM operators were missing.
TouchDMIS is easy and ready to use: you only need a few hours of training to use the software effectively and efficiently.
The full-touch experience
TouchDMIS interface is developed to provide users a new metrology software experience: touch and simplicity.
The user interface has been drawn up to provide best productivity for both trainee and expert CMMs user.
TouchDMIS uses floating toolbars and thru-view windows to make the most of the main features directly accessible accross few Function Buttons that are always accessible.
The future of coordinate metrology is here. Touch it!
Easy and ready to use
Measurement software is known for its difficulty of use and long learning curves. Thanks to its user-friendly interface, TouchDMIS challenges this concept: after a few hours of training you can use the software quickly and efficiently.
All essential features at your fingertips
The goal of TouchDMIS is to simplify the user experience of operators. All the functions of TouchDMIS are easily accessible with a simple touch on the screen.
Floating windows allow you to organize the workspace according to your needs.
Easy graphical editing of the program
When you want to edit your program, you can easily and quickly change graphically through the CAD environment.
Each individual point or scanning path is visually represented and updated live as changes are made and is simulated offline prior to the final run. You can immediately review the results, in a graphical or text format.
Create your own 4.0 metrology room
Complete your metrology room by integrating TouchDMIS and Metrology Gate.
Then, you can have access to the CMM controller and track the activity of your measuring instruments.
A simple but accurate inspection journey
Dive into a new measurement software experience. TouchDMIS has made the inspection process a comfortable but accurate journey: from the import of CAD to the creation of the measurement report. All these steps can be performed with simple touch commands.
Create Reports
TouchDMIS offers a choice of inspection reports for Real-time reporting.
XML, Excel, TXT, and PDF exportable output provides flexible reporting.
Applications Typical for TouchDMIS
TouchDMIS metrology software is often used in the following applications
- Inspection
- Reverse Engineering
- Part Archiving
- Rapid Prototyping
- Engineering Analysis
ARCOCAD
Dimensional metrology software for CMMs
ARCOCAD is a full-featured dimensional metrology application that controls, gathers data, and automates CMM processes. Built to optimize accuracy, measurement speed, and programability, ARCOCAD drives CMM hardware and gathers measurement data producing detailed inspection reports and graphical representations.
Programming
With ARCOCAD the generation of measure path of a part, even without the CAD model definition, is easy.
Programming from CAD model
ARCOCAD offers a series of useful tools for part programming:
- pick the points on the CAD surface and automatically generate the path inspection program.
- use strategies to easily measure any features.
- in any moment it is possible to switch the status of the CMM from a real measure to an off-line mode to obtain a complete simulation of the measure cycle.
Project Properties
It is possible to save in an ARCOCAD project a complete set of parameters:
- DMIS program
- CAD input data file
- REPORTER choice of the graphical outputs
- ICONS for a quick selection of the program
- IMAGES for part identification
- DESCRIPTION of probe mounting
All these parameters can be saved in the PROJECT, making it possible to save and restore it quickly and easily.
Reporter
We have introduced new functionalities to make the report definition easier and quicker. With ARCOCAD it is possible to generate different types of reports: textual, graphical, with table and callouts, reports automatically generated in Excel format using a fully customized template.
Software Modules
ARCOCAD QUICK – This version is the base product: it allows the measurement of prismatic elements following a guided procedure and the execution of complex part programming.
ARCOCAD GRAPHICS – This version consists of the QUICK version with additional graphical tools. It allows a view of the measured element in the graphic area and facilitates the selection of elements for the creation of an evaluation report.
ARCOCAD CAD – This is the powerful version of the ARCO Family. It’s possible to load the CAD model of the part with an import of the IGES file. With the graphics tools, part programming generation is fast and easy.
ARCOCAD OFFLINE – This version allows the creation of a complete part program using the CAD DATA of a part, saving time when the part to be measured is not available. It allows the setting of probe configuration, the generation of measure paths and the simulation of a measuring cycle. Once the part is available, the time required for measuring is reduced to a minimum.
ARCOCAD CLOUD – ARCOCLOUD allows to extend the use of ARCOCAD to no contact probes, laser probes are able to gather data in a short time. With this option is possible:
- Evaluate geometrical elements from a points cloud
- Define a colored map able to show the error distributions in a simple way
- Apply different filters and export to the point cloud
ARCOCAD BLADE – ARCOBLADE is an option of ARCOCAD and creates the possibility to generate a complete analysis on the turbine blade. A complete analysis of the blade section is performed that includes:
- Chordal length
- Maximum Thickness
- Radius of the two sides, entrance and exit
ARCOCAD GEAR – ARCOGEAR is an option of ARCOCAD and gives the possibility to generate a measuring program and a graphical report of the measurement being done. It is possible to measure:
- Cylindrical gear, external teeth right and helical, internal right teeth
- It is possible to use trigger and continuous scanning probe
- The graphical report is done in according to the DIN3961-3962 standard
- For each controlled characteristic, evaluate a quality IT indicator
ARCOCAD MULTI-ARM – With this option ARCOCAD adds the possibility to use multiple CMM arms. The MULTI-ARMS option gives ARCOCAD the ability of connecting more measurement instruments. It is possible to share and exchange reference systems, measured elements and synchronization commands. Every part of the system can operate by itself or work connected with others at any time.
Metrology Gate
In a totally connected world, information is shared and required in real time. Quality and connectivity go hand in hand. Metrology Gate offers the 4.0 access to this new connected world!
Machine Monitor
Keep track of your machines from your mobile app or your web browser.
Have the full status under control: the program running, environmental information and the history of the hardware errors.
A single dashboard will always keep you updated.
Environmental Parameters
Keep the environment parameters of the metrology room always monitored.
Thanks to IoT technology, Metrology Gate allows you to monitor the main environmental parameters of your metrology room such as temperature, humidity and vibration.
Statistical Evaluation
All the measuring results stored in a single repository accessible anytime and everywhere.
A full statistical evaluation of the data lets any user understand how the production is going without going through desktop application, justdownload the app to always be connected
Comparative Analysis
Get an analytic analysis of the measuring results comparing the different machines and measuring tools production in order to get a view
of the performance.
This is a fundamental help to plan your next maintenance or a help in choosing the next machine tool.
Historical Repository
All the history of the inspections of your instruments are stored and available.
Errors, environmental data, or streaming of your machine are present in a dedicated dashboard from where no secrets are hidden. You can retrieve your machine data at any time and anywhere.
Measuring Report
From your statistical analysis to your PDF or Excel reporting.
Get the most out of your inspection data by downloading measurement reports in PDF or Excel format!
Why use Metrology Gate?
- It allows the production department to keep control of the relevant data, avoiding delays in data searching and improving the reporting process, as all necessary data is quickly available.
How can Metrology Gate help my company?
- Flexibility and immediate availability of results allows the different instances of decision of a company to accelerate the decision-making process, as they can count on ready and objective information.
What can Metrology Gate tell me?
- Each company has different needs, and each client has particular requests. Metrology Gate meets the needs of both – companies and clients – by offering precisely what is necessary.
- Besides all the real time statistical information, Metrology Gate provides OEE, which allows to measure the efficiency of the company.
- Furthermore, the Machine Monitor let you know, at anytime on the free mobile App, what is happening on each instrument, and provides historical logs to troubleshoot situations and plan maintenance.
Why do I need it in my metrology room?
- In the manufacturing environment, all the information related to production are quite well handled by the so called MES.
- (Manufacturing Execution System), but the information of the quality of the production are still demanded to more traditional analysis instruments such as SPC and most commonly, Excel.
- Metrology is the only segment of the supply chain that even providing the highest number of data, is supported by a poor infrastructure for real time access to data.
Polyworks
PolyWorks|Inspector™ is a universal 3D dimensional analysis and quality control software solution to control tool or part dimensions, diagnose and prevent manufacturing and assembly issues, guide assembly building through real-time measurements, and oversee the quality of assembled products by using portable metrology devices and CNC CMMs.
CMM Manager
CMM-Manager by QxSoft is a task-oriented, highly intuitive, 3D CAD based, software package for any CMM. Software is available for both new and existing CMM hardware. We offer software for vision, manual, portable, and CNC coordinate measuring machines. Avoid costly hardware retrofits, our software connects directly to your existing CMM or Metrology equipment by plug-n-play retrofit.
MODULES
SENSORS
Our multi-sensor CMMs can be equipped with an extensive range of scanning and trigger contact sensors and optical scanning sensors, tool changing automation hardware and probe heads.
LASER SCANNERS
VIVID SLK25
High accuracy, high resolution blue laser CMM scanner
Thanks to VIVID laser scanner technology from LK Metrology, the SLK25 provides quality professionals with an opportunity to maximize efficiency when measuring complex surfaces, small details, fragile parts, dark materials and reflective surfaces – by overcoming the limitations of tactile inspection and other non-contact technologies.
VIVID Technology
VIVID multiple exposure technology quadruples the dynamic range of the laser scanner. More surfaces, including the most challenging dark, transparent or highly reflective materials can be measured in a single pass or the laser scanner. Phasing the exposure time during scanning to match the part surface, optimizes acquisition speeds and data quality. Exposure settings are included for typical applications, with fully configurable user settings for individual requirements.
Scanner Type | Line |
Laser line width | 25 mm (.98 in) |
Points/second | 268k |
Resolution (near, mid, far) | 12, 13, 14 µm |
Scan Rate | 140 Hz |
NIKON L100
The newest laser scanner introduces the 4th generation Enhanced Sensor Performance (ESP4). With a high point resolution along a 100 mm wide stripe, the L100 achieves a data collection rate of 200,000 points per second. As the most productive line scanner, it offers double the point resolution, 2.5 x the scanning speed and 30% better accuracy than other scanners. With a projected field-of-view, the L100 makes for easy path planning and the ESP4 means it is the most adept at handling difficult shiny or reflective surfaces. Like other line scanners, the L100 is often used for surface and feature inspection in automotive and aerospace applications. However, its specification makes it the fastest and most accurate multi-purpose scanner, therefor the most proficient tool for almost any application.
Scanner Type | Line |
Laser line width | 100 mm (3.9 in) |
Points/second | 200k |
Resolution | 42 µm |
Standoff | 135 |
NIKON LC15Dx
The high accuracy laser scanner LC15Dx features a small laser line, and a higher number of points along said line for a higher resolution, to make it the most accurate laser scanner available on the market today. The LC15Dx perfectly suits digitizing compact or detailed objects with higher point density and tighter tolerances, both suited for surfaces and features. Considering this, the LC15Dx is often used for the inspection of high precision parts. The LC15Dx closes the gap between laser scanner and tactile probe accuracy, making it a viable alternative to a tactile probe for an increasing number of high precision CMM applications. In tests, the LC15Dx achieved the accuracy associated with using a tactile probe on a CMM. The probing error of 1.9 µm mirrors the accuracy expected when using a CMM fitted with a tactile probe. Unlike a tactile probe though, the LC15Dx uses non-contact 3D laser triangulation to measure the surface directly and eliminate probe compensation errors.
Scanner Type | Line |
Laser line width | 15 mm (0.6 in) |
Points/second | 70k |
Resolution | 22 µm |
Standoff | 68 |
NIKON XC65Dx
The XC65Dx Cross Scanner utilizes three laser stripe scanners in one sensor. The three lasers are spaced 120 degrees apart and observe the part in question from three angles. By doing this, the XC65Dx can acquire the same amount of data with just one scan than a line scanner would do in three scans. This feature makes the XC65Dx well suited to feature inspection of slots, holes and grooves in sheet metals or items with a large complex surface area. It is often used in automotive BIW (Body-in-White) inspection, gap & flush and driveline casting inspection. Whilst the long standoff Cross Scanner retains the many advantages of the original XC65Dx, it also excels in dealing with accessing difficult-to-reach or obscured areas. By capturing geometries up to a distance of 170 mm (7.1”), the scanner gains optimum access to cavity surfaces of body-in-white structures or can scan over the clamps that hold components in position. For these reasons, the XC65Dx-LS scanner is used a lot on horizontal-arm CMM in the automotive industry.
Scanner Type | Cross |
Laser line width | 3x 65 mm (2.6 in) |
Points/second | 75k |
Resolution | 65 µm |
Standoff | 107/202 |
Manual Indexing
A range of fixed and manually adjustable heads that connect a touch-trigger probe to the machine quill, allowing flexible inspection of complex components.
MH20i – Indexable head for use with TP20 stylus modules
Manual indexable probe head that combines the TP20 kinematic stylus module mount with two axis indexing, enabling flexible stylus changing and repeatable probe re-orientation.
Head Type | Manual Indexing |
Head Positions | 168 |
Angular Tilt | 0o to +90o in 15o steps |
Angular Rotation | ±180o in 15o steps |
Touch Probe | Integral |
PH6 – Fixed head with one probe socket
The PH6 is a small diameter, vertical probe head with one M8 thread probe mount for a single probe, with an integral cable.
- Compatible with M8 probes
- Shank mounted
- Simple to install
Head Type | Fixed (Vertical) |
Head Positions | – |
Angular Tilt | – |
Angular Rotation | – |
Touch Probe | TP20, TP200 |
PH6M – Fixed head with autojoint
The PH6M is compatible with multi-wired probes TP7M, OTP6M and SP600M, as well as the complete Renishaw probe range through the use of the PA series of adaptors.
Head Type | Fixed (Vertical) |
Head Positions | – |
Angular Tilt | – |
Angular Rotation | – |
Touch Probe | TP20, TP200, SP25M |
CMM 3-AXIS SYSTEMS
Renishaw probe systems are available in a wide variety of types to enable a best match for a particular application.
Motorized Head Systems
Motorized heads enable automated, repeatable re-orientation of probes to allow access to features on all faces of the part, improving the capability of the CMM and maximizing productivity.
PH10T PLUS
The PH10T PLUS is similar to the PH10M PLUS, except that it features an M8 thread probe mount in place of the autojoint. All M8 threaded probes, such as TP20 and TP200, and extension bars fit directly onto the head. The PH10T PLUS is fully compatible with all of Renishaw’s stylus and module change systems.
Head Type | Motorized Indexing |
Head Positions | 720 |
Angular Tilt | 0o to +105o in 7.5o steps |
Angular Rotation | 0o to ±180o in 7.5o steps |
Touch Probe | TP20, TP200 |
PH10M PLUS
The PH10M PLUS can carry long extension bars and complex probes such as SP25M or TP7M. The highly repeatable autojoint allows rapid probe or extension bar changing without the need for re-qualification.
Head Type | Motorized Indexing |
Head Positions | 720 |
Angular Tilt | 0o to +105o in 7.5o steps |
Angular Rotation | 0o to ±180o in 7.5o steps |
Touch Probe | TP20, TP200, SP25M |
Laser Scanner | LC15Dx, LC60Dx, L100, C65Dx/LS, VIVID SLK20 |
PH10MQ PLUS
The PH10MQ PLUS is a variant of the PH10M PLUS that allows the motorised head to be attached directly to the quill with the B-axis of the head inside the quill itself.
Head Type | Indexing Head |
Head Positions | 720 |
Angular Tilt | 0o to +105o in 7.5o steps |
Angular Rotation | 0o to ±180o in 7.5o steps |
Touch Probe | TP20, TP200, SP25M |
Laser Scanner | LC15Dx, LC60Dx, L100, C65Dx/LS, VIVID SLK20 |
PHS-2
Servo Head – PHS-2 is designed to meet the arduous requirements of ‘body-in-white’ measurement, where fine angular position and long reach are needed.
Head Type | 5-Axis Wrist |
Head Positions | Infinite |
Angular Tilt | -184o to 184o in 1µm steps at 100mm radius |
Angular Rotation | -184o to 184o in 1µm steps at 100mm radius |
Touch Probe | TP20, TP200, SP25M |
Laser Scanner | LC15Dx, LC60Dx, L100, C65Dx/LS, VIVID SLK20 |
Touch-Trigger Probe Systems
Touch-trigger probes measure discrete points, making them ideal for inspection of 3-dimensional geometric parts.
TP20
Compact module changing touch-trigger probe, which allows the use of a range of stylus configurations and extensions to access features on complex parts.
Probe Type | Touch Trigger |
Min. stylus diameter | 0.3 (0.012) |
Max. stylus diameter | 60 (2.4) |
Max. probe extension | 300 (11.8) |
Min. probing force | 0.055 N |
TP200
A compact, module-changing probe that uses strain-gauge mechanisms for higher accuracy and longer life than kinematic touch-trigger probes.
Probe Type | Touch Trigger |
Min. stylus diameter | 0.3 (0.012) |
Max. stylus diameter | 100 (3.9) |
Max. probe extension | 300 (11.8) |
Min. probing force | 0.02 N |
Scanning Probe Systems
Scanning probes can acquire several hundred surface points each second, enabling measurement of form as well as size and position.
SP25M
At only 25 mm in diameter, and with a range of scanning and touch-trigger modules, the SP25M is the world’s most compact and versatile scanning probe system.
Probe Type | Scanning |
Min. stylus diameter | 0.5 (0.02) |
Max. stylus diameter | 400 (15.7) |
Max. probe extension | 100 (3.9) |
Min. probing force | 0.1 N |
SP80
Combining long stylus reach with ultra-high accuracy performance, SP80 is the first-choice scanning probe for many applications.
Probe Type | Scanning |
Min. stylus diameter | 0.3 (0.012) |
Max. stylus diameter | 1000 (39.4) |
Max. probe extension | – |
Min. probing force | 2.2 N |
CMM 5-AXIS SYSTEMS
Unlike conventional CMM measurement methods, Renishaw’s 5-axis technology uses the synchronized motion of the CMM and the head axes to minimize the machine’s dynamic errors at ultra-high measuring speeds.
REVO-2
5-Axis Measurement System
A REVO® system delivers high performance scanning, non-contact inspection and surface finish analysis on a single CMM
High-speed measurement
- Up to 500 mm/sec resulting in increased part throughput
- Data collection rates up to 4,000 points per second
- Infinite positioning and 5-axis motion reduces non-productive transitions between features
- Rapid calibration with all positions inferred means more time measuring
High system accuracy
- 5-axis scanning minimises CMM motion and the associated dynamic errors
- Stylus wear minimised by extremely low scanning forces
- Infinite positioning and five-axis motion aid access to difficult features
- Tip-sensing further adds to the systems’ accuracy and flexibility
Great flexibility
- Maximum reach up to 800 mm from centre of head rotation
- Multi-sensor probe and stylus changing capability
- Renishaw UCCserver software application (based on I++ DME command protocol) provides the interface for REVO-2 control
- The removable probe system, used in conjunction with a low cost changer, provides added system flexibility
RSP2 -RSP2 is a dedicated lightweight tip-sensing probe for use on REVO systems, capable of 2D-scanning (x, y) and 3D-touch trigger measurement.
RSP3 – The RSP3 range complements the RSP2 probe, providing the REVO system with 3D-scanning (x,y,z) and crank stylus capabilities. It is used for
3-axis scanning, such as with a fixed REVO head angle during measurement.
Head Type | Fixed Head |
Head Positions | Infinite |
Angular Tilt | -100o to +120o |
Angular Rotation | Continuous |
Touch Probe | RSP2, RSP3 |
PH20
Unlike conventional touch-trigger measurement methods which rely on speeding up the motion of the CMM’s 3 axes to measure quickly, PH20 utilizes the head motion technology developed for
the multi-award winning REVO system to minimize the dynamic errors of the CMM at higher measurement speeds.
PH20’s unique ‘head touches’ allow measurement points to be taken by moving only the head, rather than the CMM structure. Points can be taken faster, and with improved accuracy and repeatability.
Furthermore, 5-axis motion eliminates time spent indexing the head. Together these speed increases typically result in a 3-fold improvement in throughput over conventional systems.
Head Type | 5-Axis Continuous |
Head Positions | Infinite |
Angular Tilt | ±115o |
Angular Rotation | Infinite |
Touch Probe | Integral |
Accessory Name
PORTABLE MEASURING ARMS
Take your CMM with you to any location with our portable measurement solutions. Our portable solutions allow you to perform rapid, battery-operated measurements where the operator can move freely around the part being measured.
FREEDOM ARM
Portable productivity, practicality, and flexibility
Equipped with Wi-Fi connectivity, complete battery operation, and a mobile workstation, the FREEDOM ARM gives you total mobility for your metrology needs.
With 6 axis and 7 axis portable measuring arms – for quality control, on-machine verification, reverse engineering or 3D modelling, the FREEDOM ARM series features three accuracy levels and several sizes in different portable arm configurations. These can be enhanced with manual-moving rotary tables, touch probes, and laser scanner options.
Designed for productivity, practicality, and flexibility, LK Metrology’s FREEDOM ARM performs challenging metrology tasks in almost any manufacturing environment.
- Go-to Measurement Where It Benefits You Most …
- Touch Probe
- 6-axis
- Laser Scanner & Touch Probe
- 7-axis
Freedom Arm Accessories
BRIDGE Type CMM
The Bridge product family’s bridge and quill design provide a thermally stable and ultra-stiff structure for long lasting accuracy and structural stability. This makes our multi-sensor ready, pneumatically-raised CMMs some of the most accurate and durable CMMs on the market.
Optimized metrology for small parts
ALTO provides the best balance of price and performance for your cost, accuracy and throughput needs.
Optimized for the new challenges of dimensional quality control, where parts are becoming smaller, designs more complex and design limits are narrowing. ALTO is ideal for production areas and quality control rooms where space is limited.
ALTO is a compact CMM with ingenious space-saving features such as the half-gantry design with no over-hanging guideways, fully integrated electronics, retracting PC screen arm and open access from three sides for easy part loading. Supplied with automated stylus changing as standard, ALTO is available with a standard motorized indexing probe head, or the latest high-performance 5-axis probe system for maximum efficiency.
Additionally ALTO employs high-tech aluminum alloy for the structure and guideways of its moving half-gantry. This cost-effective materials technology provides the stiffness needed for accuracy, while keeping ALTO’s moving mass to a minimum for high-speed measurement.
- Aluminium half-gantry design with micro-machined guideways for precision and hard anodization for resistance to wear and corrosion
- Air bearings with large bearing spread for dynamic stability and a low maintenance, self-cleaning design
- Smooth, exact motion control friction drives enabling zero hysteresis, low maintenance
- 0.1µm encoders – high resolution optical scale system for accuracy
- Optional manufacturing environment-friendly anti-vibration features
- Temperature compensation for quality labs and workshop environments
- Integrated screen and keyboard arm and optional controller mounting
Sizes Available (measuring volume = n00 mm)
6.5.5 |
Accuracy
Volumetric Accuracy | From 2.5 µm + 3.0 L/1000 |
Repeatability | From 2.3 µm |
Probing Accuracy | From 2.5 µm |
Velocity | From 500 mm/sec |
Acceleration | From 1500 mm/sec2 |
Probing Options
Tactile Probes
|
|
Multi-sensor
|
Scanning
|
Touch Triggers
|
|
Small-size Bridge CMM
Ideal first step into automated inspection.
ALTERA C is ideal for all types of precision metrology applications in quality labs, production areas and technology centers. With easy-to-use software and versatile probing options, ALTERA C is ideal for quality professionals taking their first steps in building up an automated inspection capability.
Faster and more precise than similar sized CMMs, ALTERA C provides the performance and flexibility needed to keep pace with a wide range of series product related metrology tasks. With easy-to-use software and choice of sensor technology, including touch trigger, scanning and non-contact, ALTERA C provides a future-proof platform ready for additional capacity and new technology.
- Compact footprint
- High accuracy measurement and efficient throughput
- Integrated technology with optional monitor & keyboard
LK Metrology ceramic technology CMM is guaranteed to maintain its original accuracy specification for a period of 10 years.
Under the terms provided hereunder and detailed in the prevailing sales contracts and documents. Applies to LK Metrology “Ceramic Technology” branded CMMs only.
Sizes Available (measuring volume = n00 mm)
7.7.5 | 10.7.7 | 12.9.7 |
10.7.5 | 15.9.7 |
Accuracy
Volumetric Accuracy | From 1.7 µm + L/333 |
Repeatability | From 1.5 µm |
Probing Accuracy | From 1.7 µm |
Velocity | From 720 mm/s |
Acceleration | From 1,900 mm/s2 |
Probing Options
Tactile Probes
|
|
|
|
Multi-sensor
|
|
Touch Triggers
|
|
Laser Scanning
|
|
|
|
Small-size, High-accuracy Bridge CMM
Optimized precision for tight tolerance parts.
Master your daily metrological challenges with maximum precision, ALTERA C HA (high accuracy) delivers the best possible results for every measurement challenge, helping you to meet those ever increasing demands for quality improvement.
To achieve the best possible measuring results within the shortest possible time requires a perfectly balance system. ALTERA C HA is the best combination of precision measuring machine, latest sensor technology and up-to-date software. Manufacturers can tailor the capabilities of ALTERA C HA to align with their needs for automated inspection using options and accessories.
- Compact footprint
- High accuracy measurement and efficient throughput
- Integrated technology with optional monitor & keyboard
LK Metrology ceramic technology CMM is guaranteed to maintain its original accuracy specification for a period of 10 years.
Under the terms provided hereunder and detailed in the prevailing sales contracts and documents. Applies to LK Metrology “Ceramic Technology” branded CMMs only.
Sizes Available (measuring volume = n00 mm)
7.7.5 | 10.7.7 | 12.9.7 |
10.7.5 | 15.9.7 |
Accuracy
Volumetric Accuracy | From 1.7 µm + L/410 |
Repeatability | From 1.5 µm |
Probing Accuracy | From 1.9 µm |
Velocity | From 548 mm/s |
Acceleration | From 1,392 mm/s2 |
Probing Options
|
|
Touch Triggers
|
Laser Scanning
|
|
|
|
Medium-size Bridge CMM
Multi-purpose capabilities tailored to your workflow and process.
ALTERA S makes it easier and faster to measure the most complex of parts in a single CMM set-up. Multi-sensor technology combines the precision of tactile probing, high-speed measurement of scanning and high-density of non-contact inspection, to extending the CMM application scope to new materials and geometries in-line with your evolving requirements.
ALTERA S is ideal for small-to-medium-sized manufacturers needing to increase their automated metrology capabilities with multi-purpose measurement capabilities tailored to the accuracy, throughput and workflow of your quality processes. Multi-sensor ready technology allows you to expand the capability of your CMM as your requirements change, and without expensive controller upgrades.
- Cutting-edge design built for flexibility
- Advanced multi-sensor ready technology
- Innovative folding guideway panel design
LK Metrology ceramic technology CMM is guaranteed to maintain its original accuracy specification for a period of 10 years.
Under the terms provided hereunder and detailed in the prevailing sales contracts and documents. Applies to LK Metrology “Ceramic Technology” branded CMMs only.
Sizes Available (measuring volume = n00mm)
10.7.6 | 10.10.8 |
15.7.6 | 12.10.8 |
15.10.8 | |
20.10.8 |
Accuracy
Volumetric Accuracy | From 1.8 µm + L/400 |
Repeatability | From 2.0 µm |
Probing Accuracy | From 1.3 µm |
Velocity | From 760 mm/s |
Acceleration | From 2,290 mm/s2 |
Probing Options
Tactile Probes
|
|
Multi-sensor
|
Scanning
|
Touch Triggers
|
|
Laser Scanning
|
|
|
|
Large-size Bridge CMM
Addresses the widest range of quality control requirements.
ALTERA M provides superior multi-sensor technology, with the speed and flexibility needed to measure a range of parts in a fast-paced setting.
This high-performance multi-sensor metrology solution, for series production and shopfloor environments, offers automation solutions that fit seamlessly around your processes to provide 24/7 quality control and remote access to CMM quality data from any internet-enabled device. Ready to meet your expanding inspection needs and set for your future requirements as technology evolves, ALTERA M provides dependable measurement results across all manufacturing environments.
- Designed for high-speed tactile probe & laser scanning applications
- Wide range of sizes available
- Preferred choice for automotive & aerospace OEMs
LK Metrology ceramic technology CMM is guaranteed to maintain its original accuracy specification for a period of 10 years.
Under the terms provided hereunder and detailed in the prevailing sales contracts and documents. Applies to LK Metrology “Ceramic Technology” branded CMMs only.
Sizes Available (measuring volume = n00 mm)
8.7.6 | 10.10.8 | 15.12.10 | 20.15.10 | 20.15.12 | 20.15.15 | 25.20.15 |
10.7.6 | 15.10.8 | 20.12.10 | 25.15.10 | 25.15.12 | 25.15.15 | 30.20.15 |
20.10.8 | 25.12.10 | 30.15.10 | 30.15.12 | 30.15.15 | 35.20.15 | |
25.10.8 | 30.12.10 | 35.15.10 | 35.15.12 | 35.15.15 | 40.20.15 | |
40.15.15 | 50.20.15 | |||||
60.20.15 |
Accuracy
Volumetric Accuracy | From 1.4 µm + L/375 |
Repeatability | From 1.4 µm |
Probing Accuracy | From 1.2 µm |
Velocity | From 830 mm/s |
Acceleration | From 2,510 mm/s2 |
Probing Options
Tactile Probes
|
Multi-sensor
|
Scanning
|
Touch Triggers
|
|
Laser Scanning
|
|
|
|
Maximum Productivity
Advanced 5-axis multi-sensor technology for unrivaled performance.
Ten times more productive than its closest rival, LK Metrology’s SCANtek5 technology has boosted measurement throughput, shortened production lead times and provided a complete dimensional insight for manufacturers of precision parts and series production.
Unprecedented measuring speed, the flexibility of multi-sensor technology and optimized 5-axis metrology have boosted measurement throughput, shortened production lead times and provided a more complete awareness of product conformance.
Combining the benefits of ceramic CMM technology and the most advanced 5-axis multi-sensor system, ALTERA SCANtek provides five interchangeable probe technologies, including tactile scanning, touch-trigger, surface finish, non-contact vision and ultrasonic probes to enable automated selection of the most advantageous probing technology while maximizing the advantages of 5-axis measurement, infinite probe head positioning and long probe assemblies.
- Revolutionary 5-Axis multi-sensor technology
- Ultra fast scanning
- Infinite head positioning
- Surface finish analysis
LK Metrology ceramic technology CMM is guaranteed to maintain its original accuracy specification for a period of 10 years.
Under the terms provided hereunder and detailed in the prevailing sales contracts and documents. Applies to LK Metrology “Ceramic Technology” branded CMMs only.
Sizes Available (measuring volume = n00 mm)
Altera M
8.7.6 | 10.10.8 | 15.12.10 | 20.15.10 | 20.15.12 | 20.15.15 | 25.20.15 |
10.7.6 | 15.10.8 | 20.12.10 | 25.15.10 | 25.15.12 | 25.15.15 | 30.20.15 |
20.10.8 | 25.12.10 | 30.15.10 | 30.15.12 | 30.15.15 | 35.20.15 | |
25.10.8 | 30.12.10 | 35.15.10 | 35.15.12 | 35.15.15 | 40.20.15 | |
40.15.15 | 50.20.15 | |||||
60.20.15 |
Altera SL
8.7.6 | 10.10.8 | 15.12.10 | 25.15.10 | 20.15.15 | 25.20.15 |
10.7.6 | 15.10.8 | 20.12.10 | 25.15.15 | ||
15.7.6 | 20.10.8 | 25.12.10 |
Accuracy
Altera M | Altera SL | |
Volumetric Accuracy | From 1.4 µm + L/375 | From 1.5 µm + L/400 |
Repeatability | From 1.4 µm | From 0.7 µm |
Probing Accuracy | From 1.2 µm | From 0.9 µm |
Scanning Accuracy | From 3.0 µm @ 90s | From 3.0 µm @ 48s |
Velocity | From 830 mm/s | From 850 mm/s |
Acceleration | From 2,510 mm/s2 | From 1,400 mm/s2 |
Probing Options
Ultra-Accurate Bridge CMM
Sub-micron accuracy for exacting levels of precision.
Every aspect of the ALTERA SLHA has been optimized around the desire for ultra-accurate measurements. Metrology institutes and calibration laboratories trust the performance of the raised guideway design and flexibility of the ceramic technology moving bridge for a variety of research and industrial metrology applications, and wherever precision components demand exacting measurements.
The ALTERA SLHA CMM is the most advanced high accuracy system on offer from LK Metrology today, and is among the highest accuracy CMMs available on the market. The advanced multi-sensor ready technology optimizes the CMM throughput and provides the opportunity to broaden the application scope to new materials and components as customer needs change.
LK Metrology ceramic technology CMM is guaranteed to maintain its original accuracy specification for a period of 10 years.
Under the terms provided hereunder and detailed in the prevailing sales contracts and documents. Applies to LK Metrology “Ceramic Technology” branded CMMs only.
Sizes Available (measuring volume = n00 mm)
8.7.6 | 10.10.8 | 15.12.10 |
10.7.6 | 15.10.8 | 20.12.10 |
15.7.6 | 20.10.8 | 25.12.10 |
25.10.8 |
Accuracy
Volumetric Accuracy | From 0.7 µm + L/600 |
Repeatability | From 0.5 µm |
Probing Accuracy | From 0.9 µm |
Velocity | From 310 mm/s |
Acceleration | From 560 mm/s2 |
Probing Options
Multi-sensor
|
Scanning
|
|
Touch Triggers
|
|
Laser Scanning
|
|
|
|
Extra-large Bridge CMM
Accurate measurement of large and heavy workpieces.
The Maxima range of solutions has a proven pedigree within aerospace, large-scale commercial vehicle applications and manufacturers of large performance critical components.
The unique LK Metrology, proprietary design, low gap high-efficiency air bearings and zero hysteresis drive systems ensure premium quality, high accuracy and throughput of Maxima CMMs to meet the needs of large-scale manufacturers.
- Very large-scale metrology applications
- Bonded ceramic materials
- High performing beam and spindle construction
- Greater resistance to time, wear and temperature variations
- Touch-trigger, contact and non-contact laser scanning
LK Metrology ceramic technology CMM is guaranteed to maintain its original accuracy specification for a period of 10 years.
Under the terms provided hereunder and detailed in the prevailing sales contracts and documents. Applies to LK Metrology “Ceramic Technology” branded CMMs only.
Sizes Available (measuring volume = n00 mm)
30.20.20 | 30.25.15 | 30.25.20 |
40.20.20 | 40.25.15 | 40.25.20 |
50.20.20 | 50.25.15 | 50.25.20 |
60.20.20 | 60.25.15 | 60.25.20 |
Accuracy
Volumetric Accuracy | From 3.5 µm + L/350 |
Repeatability | From 3.5 µm |
Velocity | From 545 mm/s |
Acceleration | From 480 mm/s2 |
Probing Options
Multi-sensor
|
|
Scanning
|
Touch Triggers
|
|
Laser Scanning
|
|
|
|
CMM ACCESSORIES
gantry
LK Metrology’s gantry solutions are designed to measure larger parts that wouldn’t be practical to measure using other types of CMMs. This type of CMM presents practical advantages: low maintenance costs, a contaminant-optimized design, and the ability for operators to walk into the inspection area to physically check the assembly during operation.
The ideal measurement solution for large precision components
The AEROS Series of Gantry style CMMs are an innovative mechanical design that ensures durable metrology, measurement data stability and low maintenance and calibration costs. The AEROS features aluminum alloy Z-axis spindles and a “Single Read” scale system on the X-axis.
The AEROS S models offer medium to large Gantry style metrology for improved structural stability and adaptability.
The AEROS P gantry systems are also designed to inspect large, geometrically accurate components, such as marine engines, transmissions, large transportation vehicles, large parts and tools with free-form and sculptured surfaces. The AEROS P CMMs work particularly well in aerospace, strategic and energy settings. The CMM’s structure, “Dual Drive” motion and “Dual Read” positioning system on the X-axis beams limit structural deformations during movement, ensuring excellent metrological performance.
- Ideal for large precision components
- Uses the latest innovations in aluminum and steel CMM guideway technology
- Open design is extremely adaptable, providing full access to the work area
Sizes Available (measuring volume = n00 mm)
AEROS30.20.10 up to 60.25.18 |
AEROS S40.20.20 up to 60.30.20 |
AEROS P50.25.20 up to 60.35.25 |
Accuracy
AEROS | AEROS S | AEROS P | |
Volumetric Accuracy | From 4.3 µm + 4L/1000 | From 4.3 µm + 5L/1000 | From 7.0 µm + 8L/1000 |
Velocity | From 500 mm/s | From 530 mm/s | From 530 mm/s |
Acceleration | From 1200 mm/s2 | From 800 mm/s2 | From 800 mm/s2 |
Probing Options
Tactile Probes
|
Multi-sensor
|
Laser Scanning
|
|
|
|
Ultra: Very-large-scale measurement for very-large-scale precision engineering
The Ultra range of solutions has a proven pedigree within aerospace airframe and large blades inspection, land transportation, large engine and transmission components, large scale gears, power generation, large turbines, maritime engine and propellers, and locomotive components.
Made for very-large-scale measurement applications the LK Metrology Ultra CMM Series, with its elevated guideway design, offers among the most flexible solutions in the industry today for 3D dimensional inspection.
The Ultra range offers three machine design variants, the monolithic design with an integrated work-table, the classic gantry design, and the proven guideways on U-foundation design which can be implemented as above ground, ground level, or, in sub-ground foundation pit installations. All variants are based upon a common modular design concept providing high performance, reliability and an easy to maintain measuring system.
Laser Scanning
|
|
|
|
horizontal
Horizontal CMMs are designed for elongated parts and assemblies. LK Metrology produces a durable range of horizontal CMMs for every budget and accuracy requirement.
Bridge CMM accuracy with Horizontal flexibility
Geometric stability at high speed, and resistance to harsh environments are difficult to achieve using aluminum or cast-iron guideways with mechanical bearings. The HC-90’s ceramic column runs on LK Metrology’s proprietary air suspension system to deliver Bridge-like accuracy for larger components.
- High-quality 96% Alumina Ceramic for optimal speed, stiffness and long-lasting measurement accuracy
- Designed for production-line integration
- Flexible positioning and articulation
- The option to install it practically anywhere, even in extreme operating conditions
- Three design options
Alumina Ceramic
LK Metrology use high quality 96% Alumina Ceramic due to its exceptional stiffness and thermal characteristics. Alumina Ceramic is 330% stiffer and 4x more thermally stable than aluminum and provides the rigidity that’s paramount in providing the rser with a high accuracy coordinate measuring machine.
Stress relief in any structure causes it to change shape. In a CMM, this means continual dimensional instability. Using stress-free Ceramic guideways, as opposed to a continually stress relieving aluminum fabricated assemblies, assures long lasting confidence in measurement accuracy and less requirement for machine verification saving the user time and money.
Alumina Ceramic is approximately 50% lighter than granite while steel is 200% stiffer and 2x more thermally stable than aluminum. Increased stiffness allows you to increase measurement speed for greater throughput across all temperature ranges with no loss of accuracy.
Sizes Available (measuring volume = n00 mm)
HC-90TTable-mounted 10.4.6 up to 50.16.20 |
HC-90RSingle-arm guideway 40.16.20 up to 100.16.30 |
HC-90TRTwin-arm guideway 40.16.20 up to 100.16.30 |
HC-90WTRFloor-integrated twin guideway 45.16.20 up to 100.16.30 |
Accuracy
T | R/TR/WR/WTR | |
Volumetric Accuracy | From 1.9 µm + L/250 | From 17 µm + 3L/200 |
Repeatability | From 1.9 µm | From 6 µm |
Velocity | From 850 mm/s | From 633 mm/s |
Acceleration | From 3,008 mm/s2 | From 2,106 mm/s2 |
Probing Options
Multi-sensor
|
|
Laser Scanning
|
|
|
|
Aluminum Horizontal CMM
An advanced design for cost-effective dimensional inspection of large components typical of the automotive, land transport and heavy industries.
- Single or double arm configurations designed for production-line integration
- Air bearings on the YZ axes,
- Double recirculating bearing guideways on the X-axis
- Optional cast iron work-plates and loading/unloading systems
- Protective covers to ensure thermal and contaminant insulation
- Simplified manual or automated part loading and unloading
Sizes Available (measuring volume = n00 mm)
40.16.20 | 40.16.25 | 80.16.30 |
50.16.20 | 50.16.25 | |
60.16.20 | 60.16.25 | |
80.16.20 | 80.16.25 | |
120.16.25 |
Accuracy
Volumetric Accuracy | From 14 µm + 18L/1000 |
Velocity | From 580 mm/s |
Acceleration | From 1,500 mm/s2 |
Probing Options
Multi-sensor
|
|
Laser Scanning
|
|
|
|
LY-90T – Table-mounted horizontal CMM
The LY-90T is a table CMM designed for part accessibility. Developed specifically for car-body and sub-assembly quality inspection applications, the LY-90T is the perfect solution for sheet-metal and plastic component metrology.
- Console-mounted horizontal arm
- Measurement system with linear optical transducers
- Control of movement through servo motors
- Air bearings on the Y-Z axes and precision guideways on the X-axis
- Mechanical carrier counterbalance with safety brake
- Optional cast iron work-plates
LY-90R/TR – Runway-based horizontal CMM
The LY-90R is a runway-based CMM designed for part accessibility. Developed specifically for automotive, land transport and heavy industry quality inspection applications, the LY-90R can be installed on a pneumatic vibration isolation system for use in production environments, without the need for dedicated foundations for the system. Offered in Rail (R) and Twin-Rail (TR) configurations.
- Runway horizontal arm CMM
- Measurement system with linear optical transducers
- Control of movement through servo motors
- Air bearings on the Y-Z axes, precision guideways on the X-axis
- Mechanical carrier counterbalance with safety brake
- Optional cast iron work-plates
Accuracy
T | R/TR | |
Volumetric Accuracy | From 10 µm + 18L/1000 | From 10 µm + 15L/1000 |
Velocity | From 520 mm/s | From 520 mm/s |
Acceleration | From 850 mm/s2 | From 850 mm/s2 |
Probing Options
Multi-sensor
|
Laser Scanning
|
|
|
|
SOFTWARE
LK Metrology offers a range of multi-sensor CMM software packages to control and report measurement data.
CAMIO 2024 R1 Available Now!
Full-Featured Metrology Software for Industry 4.0
CAMIO has core competencies that provide real enhancements to benefit each stage of a production process. By leveraging these benefits to improve product quality, reduce cost and accelerate lead times, manufacturers gain a real and measurable competitive advantage. Whether a small company with one CMM or large organization with multiple installations, CAMIO provides a CMM software solution to match your business requirements and safeguard your investment.
Software Interface
CAMIO has in-depth programming, analysis and reporting capabilities for a wide range of CMM applications – all features are tightly integrated into a single platform using proven technology and the latest developments in CMM software. CAMIO encourages users to drive the inspection process graphically, everything from part alignment, feature inspection and dimensional tolerancing is much faster and more intuitive when users work with CAMIO’s advanced user interface. Novice users find the step-through approach to CMM inspection particularly easy to master and quickly migrate to the more progressive features of the software. More experienced users appreciate the advanced functionality and high-level DMIS language with conditional program execution and user macros.
Programming
CAMIO provides a powerful suite of graphical programming tools for 3D measurement – including online and offline programming, CAD and non-CAD applications and multi- sensor technology. CAMIO’s advanced feature-based and point cloud- based programming routines simply complex inspection tasks by linking functions and applying specialized measurement sequences – from manual non-CAD programming to advanced 3D multi-path scanning methods using CAD.
Scanning Probes
Scanning probes are ideal for high accuracy profile and form measurement, CAMIO programming functionality includes:
- Feature scan
- Section scan
- Offset edge
- Data filters
- Feature algorithms
- Sampling frequency
Laser Scanners
Laser scanners are used for freeform parts and semi-ridged materials, CAMIO programming functionality includes:
- Feature measurement
- Point-cloud simulation
- 3D continuous scanning
- Field-of-view simulation
- Laser line setting
- Filters and meshing
Probe Builder
CAMIO includes a library of accessories for defining probe assemblies.
Teach & Learn Programming
CAMIO Teach & Learn allows programmers to conveniently update programs online, and create new programs for non-CAD applications using the CMM handbox.
Reporting
CAMIO enables manufacturers to analyze measurement data and share meaningful reports across multiple platforms – while keeping quality records safe for future reference. CAMIO provides a flexible inspection reporting solution to fit around your current process, while providing new possibilities.
Report Content
- GD&T flyouts
- Output table
- Form plots
- Color deviation scale
- Multiple views per page
- CAD model or digital image
- Text box
- Customer logo
- Page header and footer
- Section profile
Program Editor
CAMIO gives you the freedom to generate programs using the program- ming technique you prefer – online and offline using CAD, or teach and learn using the CMM handbox.
CAMIO provides the flexibility of different programming styles and two program editors – an easy to use block view of inspection objects with familiar drag & drop capability, and a more powerful DMIS editor for in-depth programming – both support native DMIS programs and are 100% compatible.
To safeguard your investment in inspection programs, CAMIO’s program interoperability ensures forward compatibility of your CMM programs. Allowing you to migrate from older versions of software including 3rd party software, and upgrade your hardware without having to rewrite your DMIS programs.
High-Level Language
CAMIO high-level commands extend the capability of your CMM program beyond inspection – with advanced functions including conditional program execution based on variable parameters such as measurement results, operator input and external data.
Automation
CAMIO automation software provides a modular solution for CMM automation – with options to choose the level of CMM automation capability based on the application and setting.
Inline CMM Automation
In-line CMM automation allows manufacturing cells to increase product quality and production efficiency. The CMM is fully integrated in the cell with all sequencing managed by the cell control system and CAMIO8 automation software.
- Rapid detection of process variation enables corrective actions in real-time while maintaining the flow of production.
- Automatic monitoring of the manufacturing cell for a quick response should the unexpected occur.
- Personnel and equipment safe-gaurded by presence detection devices and other safety equipment.
Stand-alone CMM Automation
Stand-alone CMM automation increases utilization and makes the CMM an easy to use quality tool for production operators. The CMM is controlled by an operator with support from CAMIO automation software.
- Intuitive program menu allows users with minimal training to operate the CMM safely.
- Optimization of part loading and program execution keeps the CMM measuring efficiently and with minimal delays between tasks.
- Running the CMM is made easy by input devices such as bar code readers and RFID tags for part identification.
CAMIO 2024 R1 Available Now, click here for more information!
Metrology Powered with a Touch of Simplicity
TouchDMIS is the full-feature dimensional metrology software developed to offer maximum user-experience. With its innovative and unique user interface that gives up the old-fashioned Windows style, TouchDMIS brings into the metrology industry the modern touch functionality that the CMM operators were missing.
TouchDMIS is easy and ready to use: you only need a few hours of training to use the software effectively and efficiently.
The full-touch experience
TouchDMIS interface is developed to provide users a new metrology software experience: touch and simplicity.
The user interface has been drawn up to provide best productivity for both trainee and expert CMMs user.
TouchDMIS uses floating toolbars and thru-view windows to make the most of the main features directly accessible accross few Function Buttons that are always accessible.
The future of coordinate metrology is here. Touch it!
Easy and ready to use
Measurement software is known for its difficulty of use and long learning curves. Thanks to its user-friendly interface, TouchDMIS challenges this concept: after a few hours of training you can use the software quickly and efficiently.
All essential features at your fingertips
The goal of TouchDMIS is to simplify the user experience of operators. All the functions of TouchDMIS are easily accessible with a simple touch on the screen.
Floating windows allow you to organize the workspace according to your needs.
Easy graphical editing of the program
When you want to edit your program, you can easily and quickly change graphically through the CAD environment.
Each individual point or scanning path is visually represented and updated live as changes are made and is simulated offline prior to the final run. You can immediately review the results, in a graphical or text format.
Create your own 4.0 metrology room
Complete your metrology room by integrating TouchDMIS and Metrology Gate.
Then, you can have access to the CMM controller and track the activity of your measuring instruments.
A simple but accurate inspection journey
Dive into a new measurement software experience. TouchDMIS has made the inspection process a comfortable but accurate journey: from the import of CAD to the creation of the measurement report. All these steps can be performed with simple touch commands.
Create Reports
TouchDMIS offers a choice of inspection reports for Real-time reporting.
XML, Excel, TXT, and PDF exportable output provides flexible reporting.
Applications Typical for TouchDMIS
TouchDMIS metrology software is often used in the following applications
- Inspection
- Reverse Engineering
- Part Archiving
- Rapid Prototyping
- Engineering Analysis
Dimensional metrology software for CMMs
ARCOCAD is a full-featured dimensional metrology application that controls, gathers data, and automates CMM processes. Built to optimize accuracy, measurement speed, and programability, ARCOCAD drives CMM hardware and gathers measurement data producing detailed inspection reports and graphical representations.
Programming
With ARCOCAD the generation of measure path of a part, even without the CAD model definition, is easy.
Programming from CAD model
ARCOCAD offers a series of useful tools for part programming:
- pick the points on the CAD surface and automatically generate the path inspection program.
- use strategies to easily measure any features.
- in any moment it is possible to switch the status of the CMM from a real measure to an off-line mode to obtain a complete simulation of the measure cycle.
Project Properties
It is possible to save in an ARCOCAD project a complete set of parameters:
- DMIS program
- CAD input data file
- REPORTER choice of the graphical outputs
- ICONS for a quick selection of the program
- IMAGES for part identification
- DESCRIPTION of probe mounting
All these parameters can be saved in the PROJECT, making it possible to save and restore it quickly and easily.
Reporter
We have introduced new functionalities to make the report definition easier and quicker. With ARCOCAD it is possible to generate different types of reports: textual, graphical, with table and callouts, reports automatically generated in Excel format using a fully customized template.
Software Modules
ARCOCAD QUICK – This version is the base product: it allows the measurement of prismatic elements following a guided procedure and the execution of complex part programming.
ARCOCAD GRAPHICS – This version consists of the QUICK version with additional graphical tools. It allows a view of the measured element in the graphic area and facilitates the selection of elements for the creation of an evaluation report.
ARCOCAD CAD – This is the powerful version of the ARCO Family. It’s possible to load the CAD model of the part with an import of the IGES file. With the graphics tools, part programming generation is fast and easy.
ARCOCAD OFFLINE – This version allows the creation of a complete part program using the CAD DATA of a part, saving time when the part to be measured is not available. It allows the setting of probe configuration, the generation of measure paths and the simulation of a measuring cycle. Once the part is available, the time required for measuring is reduced to a minimum.
ARCOCAD CLOUD – ARCOCLOUD allows to extend the use of ARCOCAD to no contact probes, laser probes are able to gather data in a short time. With this option is possible:
- Evaluate geometrical elements from a points cloud
- Define a colored map able to show the error distributions in a simple way
- Apply different filters and export to the point cloud
ARCOCAD BLADE – ARCOBLADE is an option of ARCOCAD and creates the possibility to generate a complete analysis on the turbine blade. A complete analysis of the blade section is performed that includes:
- Chordal length
- Maximum Thickness
- Radius of the two sides, entrance and exit
ARCOCAD GEAR – ARCOGEAR is an option of ARCOCAD and gives the possibility to generate a measuring program and a graphical report of the measurement being done. It is possible to measure:
- Cylindrical gear, external teeth right and helical, internal right teeth
- It is possible to use trigger and continuous scanning probe
- The graphical report is done in according to the DIN3961-3962 standard
- For each controlled characteristic, evaluate a quality IT indicator
ARCOCAD MULTI-ARM – With this option ARCOCAD adds the possibility to use multiple CMM arms. The MULTI-ARMS option gives ARCOCAD the ability of connecting more measurement instruments. It is possible to share and exchange reference systems, measured elements and synchronization commands. Every part of the system can operate by itself or work connected with others at any time.
In a totally connected world, information is shared and required in real time. Quality and connectivity go hand in hand. Metrology Gate offers the 4.0 access to this new connected world!
Machine Monitor
Keep track of your machines from your mobile app or your web browser.
Have the full status under control: the program running, environmental information and the history of the hardware errors.
A single dashboard will always keep you updated.
Environmental Parameters
Keep the environment parameters of the metrology room always monitored.
Thanks to IoT technology, Metrology Gate allows you to monitor the main environmental parameters of your metrology room such as temperature, humidity and vibration.
Statistical Evaluation
All the measuring results stored in a single repository accessible anytime and everywhere.
A full statistical evaluation of the data lets any user understand how the production is going without going through desktop application, justdownload the app to always be connected
Comparative Analysis
Get an analytic analysis of the measuring results comparing the different machines and measuring tools production in order to get a view
of the performance.
This is a fundamental help to plan your next maintenance or a help in choosing the next machine tool.
Historical Repository
All the history of the inspections of your instruments are stored and available.
Errors, environmental data, or streaming of your machine are present in a dedicated dashboard from where no secrets are hidden. You can retrieve your machine data at any time and anywhere.
Measuring Report
From your statistical analysis to your PDF or Excel reporting.
Get the most out of your inspection data by downloading measurement reports in PDF or Excel format!
Why use Metrology Gate?
- It allows the production department to keep control of the relevant data, avoiding delays in data searching and improving the reporting process, as all necessary data is quickly available.
How can Metrology Gate help my company?
- Flexibility and immediate availability of results allows the different instances of decision of a company to accelerate the decision-making process, as they can count on ready and objective information.
What can Metrology Gate tell me?
- Each company has different needs, and each client has particular requests. Metrology Gate meets the needs of both – companies and clients – by offering precisely what is necessary.
- Besides all the real time statistical information, Metrology Gate provides OEE, which allows to measure the efficiency of the company.
- Furthermore, the Machine Monitor let you know, at anytime on the free mobile App, what is happening on each instrument, and provides historical logs to troubleshoot situations and plan maintenance.
Why do I need it in my metrology room?
- In the manufacturing environment, all the information related to production are quite well handled by the so called MES.
- (Manufacturing Execution System), but the information of the quality of the production are still demanded to more traditional analysis instruments such as SPC and most commonly, Excel.
- Metrology is the only segment of the supply chain that even providing the highest number of data, is supported by a poor infrastructure for real time access to data.
PolyWorks|Inspector™ is a universal 3D dimensional analysis and quality control software solution to control tool or part dimensions, diagnose and prevent manufacturing and assembly issues, guide assembly building through real-time measurements, and oversee the quality of assembled products by using portable metrology devices and CNC CMMs.
CMM-Manager by QxSoft is a task-oriented, highly intuitive, 3D CAD based, software package for any CMM. Software is available for both new and existing CMM hardware. We offer software for vision, manual, portable, and CNC coordinate measuring machines. Avoid costly hardware retrofits, our software connects directly to your existing CMM or Metrology equipment by plug-n-play retrofit.
Renishaw’s new MODUS™ CMM software application enables it to offer CMM users a complete retrofit upgrade, supplied and supported by Renishaw. With full support for its entire range of sensors, including the award-winning REVO®, MODUS™ provides a powerful platform for 5-axis measurement.
MODULES
SENSORS
Our multi-sensor CMMs can be equipped with an extensive range of scanning and trigger contact sensors and optical scanning sensors, tool changing automation hardware and probe heads.
VIVID SLK25
High accuracy, high resolution blue laser CMM scanner
Thanks to VIVID laser scanner technology from LK Metrology, the SLK25 provides quality professionals with an opportunity to maximize efficiency when measuring complex surfaces, small details, fragile parts, dark materials and reflective surfaces – by overcoming the limitations of tactile inspection and other non-contact technologies.
VIVID Technology
VIVID multiple exposure technology quadruples the dynamic range of the laser scanner. More surfaces, including the most challenging dark, transparent or highly reflective materials can be measured in a single pass or the laser scanner. Phasing the exposure time during scanning to match the part surface, optimizes acquisition speeds and data quality. Exposure settings are included for typical applications, with fully configurable user settings for individual requirements.
Scanner Type | Line |
Laser line width | 25 mm (.98 in) |
Points/second | 268k |
Resolution (near, mid, far) | 12, 13, 14 µm |
Scan Rate | 140 Hz |
NIKON L100
The newest laser scanner introduces the 4th generation Enhanced Sensor Performance (ESP4). With a high point resolution along a 100 mm wide stripe, the L100 achieves a data collection rate of 200,000 points per second. As the most productive line scanner, it offers double the point resolution, 2.5 x the scanning speed and 30% better accuracy than other scanners. With a projected field-of-view, the L100 makes for easy path planning and the ESP4 means it is the most adept at handling difficult shiny or reflective surfaces. Like other line scanners, the L100 is often used for surface and feature inspection in automotive and aerospace applications. However, its specification makes it the fastest and most accurate multi-purpose scanner, therefor the most proficient tool for almost any application.
Scanner Type | Line |
Laser line width | 100 mm (3.9 in) |
Points/second | 200k |
Resolution | 42 µm |
Standoff | 135 |
NIKON LC15Dx
The high accuracy laser scanner LC15Dx features a small laser line, and a higher number of points along said line for a higher resolution, to make it the most accurate laser scanner available on the market today. The LC15Dx perfectly suits digitizing compact or detailed objects with higher point density and tighter tolerances, both suited for surfaces and features. Considering this, the LC15Dx is often used for the inspection of high precision parts. The LC15Dx closes the gap between laser scanner and tactile probe accuracy, making it a viable alternative to a tactile probe for an increasing number of high precision CMM applications. In tests, the LC15Dx achieved the accuracy associated with using a tactile probe on a CMM. The probing error of 1.9 µm mirrors the accuracy expected when using a CMM fitted with a tactile probe. Unlike a tactile probe though, the LC15Dx uses non-contact 3D laser triangulation to measure the surface directly and eliminate probe compensation errors.
Scanner Type | Line |
Laser line width | 15 mm (0.6 in) |
Points/second | 70k |
Resolution | 22 µm |
Standoff | 68 |
NIKON XC65Dx
The XC65Dx Cross Scanner utilizes three laser stripe scanners in one sensor. The three lasers are spaced 120 degrees apart and observe the part in question from three angles. By doing this, the XC65Dx can acquire the same amount of data with just one scan than a line scanner would do in three scans. This feature makes the XC65Dx well suited to feature inspection of slots, holes and grooves in sheet metals or items with a large complex surface area. It is often used in automotive BIW (Body-in-White) inspection, gap & flush and driveline casting inspection. Whilst the long standoff Cross Scanner retains the many advantages of the original XC65Dx, it also excels in dealing with accessing difficult-to-reach or obscured areas. By capturing geometries up to a distance of 170 mm (7.1”), the scanner gains optimum access to cavity surfaces of body-in-white structures or can scan over the clamps that hold components in position. For these reasons, the XC65Dx-LS scanner is used a lot on horizontal-arm CMM in the automotive industry.
Scanner Type | Cross |
Laser line width | 3x 65 mm (2.6 in) |
Points/second | 75k |
Resolution | 65 µm |
Standoff | 107/202 |
A range of fixed and manually adjustable heads that connect a touch-trigger probe to the machine quill, allowing flexible inspection of complex components.
MH20i – Indexable head for use with TP20 stylus modules
Manual indexable probe head that combines the TP20 kinematic stylus module mount with two axis indexing, enabling flexible stylus changing and repeatable probe re-orientation.
Head Type | Manual Indexing |
Head Positions | 168 |
Angular Tilt | 0o to +90o in 15o steps |
Angular Rotation | ±180o in 15o steps |
Touch Probe | Integral |
PH6 – Fixed head with one probe socket
The PH6 is a small diameter, vertical probe head with one M8 thread probe mount for a single probe, with an integral cable.
- Compatible with M8 probes
- Shank mounted
- Simple to install
Head Type | Fixed (Vertical) |
Head Positions | – |
Angular Tilt | – |
Angular Rotation | – |
Touch Probe | TP20, TP200 |
PH6M – Fixed head with autojoint
The PH6M is compatible with multi-wired probes TP7M, OTP6M and SP600M, as well as the complete Renishaw probe range through the use of the PA series of adaptors.
Head Type | Fixed (Vertical) |
Head Positions | – |
Angular Tilt | – |
Angular Rotation | – |
Touch Probe | TP20, TP200, SP25M |
Renishaw probe systems are available in a wide variety of types to enable a best match for a particular application.
Motorized Head Systems
Motorized heads enable automated, repeatable re-orientation of probes to allow access to features on all faces of the part, improving the capability of the CMM and maximizing productivity.
PH10T PLUS
The PH10T PLUS is similar to the PH10M PLUS, except that it features an M8 thread probe mount in place of the autojoint. All M8 threaded probes, such as TP20 and TP200, and extension bars fit directly onto the head. The PH10T PLUS is fully compatible with all of Renishaw’s stylus and module change systems.
Head Type | Motorized Indexing |
Head Positions | 720 |
Angular Tilt | 0o to +105o in 7.5o steps |
Angular Rotation | 0o to ±180o in 7.5o steps |
Touch Probe | TP20, TP200 |
PH10M PLUS
The PH10M PLUS can carry long extension bars and complex probes such as SP25M or TP7M. The highly repeatable autojoint allows rapid probe or extension bar changing without the need for re-qualification.
Head Type | Motorized Indexing |
Head Positions | 720 |
Angular Tilt | 0o to +105o in 7.5o steps |
Angular Rotation | 0o to ±180o in 7.5o steps |
Touch Probe | TP20, TP200, SP25M |
Laser Scanner | LC15Dx, LC60Dx, L100, C65Dx/LS, VIVID SLK20 |
PH10MQ PLUS
The PH10MQ PLUS is a variant of the PH10M PLUS that allows the motorised head to be attached directly to the quill with the B-axis of the head inside the quill itself.
Head Type | Indexing Head |
Head Positions | 720 |
Angular Tilt | 0o to +105o in 7.5o steps |
Angular Rotation | 0o to ±180o in 7.5o steps |
Touch Probe | TP20, TP200, SP25M |
Laser Scanner | LC15Dx, LC60Dx, L100, C65Dx/LS, VIVID SLK20 |
PHS-2
Servo Head – PHS-2 is designed to meet the arduous requirements of ‘body-in-white’ measurement, where fine angular position and long reach are needed.
Head Type | 5-Axis Wrist |
Head Positions | Infinite |
Angular Tilt | -184o to 184o in 1µm steps at 100mm radius |
Angular Rotation | -184o to 184o in 1µm steps at 100mm radius |
Touch Probe | TP20, TP200, SP25M |
Laser Scanner | LC15Dx, LC60Dx, L100, C65Dx/LS, VIVID SLK20 |
Touch-Trigger Probe Systems
Touch-trigger probes measure discrete points, making them ideal for inspection of 3-dimensional geometric parts.
TP20
Compact module changing touch-trigger probe, which allows the use of a range of stylus configurations and extensions to access features on complex parts.
Probe Type | Touch Trigger |
Min. stylus diameter | 0.3 (0.012) |
Max. stylus diameter | 60 (2.4) |
Max. probe extension | 300 (11.8) |
Min. probing force | 0.055 N |
TP200
A compact, module-changing probe that uses strain-gauge mechanisms for higher accuracy and longer life than kinematic touch-trigger probes.
Probe Type | Touch Trigger |
Min. stylus diameter | 0.3 (0.012) |
Max. stylus diameter | 100 (3.9) |
Max. probe extension | 300 (11.8) |
Min. probing force | 0.02 N |
Scanning Probe Systems
Scanning probes can acquire several hundred surface points each second, enabling measurement of form as well as size and position.
SP25M
At only 25 mm in diameter, and with a range of scanning and touch-trigger modules, the SP25M is the world’s most compact and versatile scanning probe system.
Probe Type | Scanning |
Min. stylus diameter | 0.5 (0.02) |
Max. stylus diameter | 400 (15.7) |
Max. probe extension | 100 (3.9) |
Min. probing force | 0.1 N |
SP80
Combining long stylus reach with ultra-high accuracy performance, SP80 is the first-choice scanning probe for many applications.
Probe Type | Scanning |
Min. stylus diameter | 0.3 (0.012) |
Max. stylus diameter | 1000 (39.4) |
Max. probe extension | – |
Min. probing force | 2.2 N |
Unlike conventional CMM measurement methods, Renishaw’s 5-axis technology uses the synchronized motion of the CMM and the head axes to minimize the machine’s dynamic errors at ultra-high measuring speeds.
REVO-2
5-Axis Measurement System
A REVO® system delivers high performance scanning, non-contact inspection and surface finish analysis on a single CMM
High-speed measurement
- Up to 500 mm/sec resulting in increased part throughput
- Data collection rates up to 4,000 points per second
- Infinite positioning and 5-axis motion reduces non-productive transitions between features
- Rapid calibration with all positions inferred means more time measuring
High system accuracy
- 5-axis scanning minimises CMM motion and the associated dynamic errors
- Stylus wear minimised by extremely low scanning forces
- Infinite positioning and five-axis motion aid access to difficult features
- Tip-sensing further adds to the systems’ accuracy and flexibility
Great flexibility
- Maximum reach up to 800 mm from centre of head rotation
- Multi-sensor probe and stylus changing capability
- Renishaw UCCserver software application (based on I++ DME command protocol) provides the interface for REVO-2 control
- The removable probe system, used in conjunction with a low cost changer, provides added system flexibility
RSP2 -RSP2 is a dedicated lightweight tip-sensing probe for use on REVO systems, capable of 2D-scanning (x, y) and 3D-touch trigger measurement.
RSP3 – The RSP3 range complements the RSP2 probe, providing the REVO system with 3D-scanning (x,y,z) and crank stylus capabilities. It is used for
3-axis scanning, such as with a fixed REVO head angle during measurement.
Head Type | Fixed Head |
Head Positions | Infinite |
Angular Tilt | -100o to +120o |
Angular Rotation | Continuous |
Touch Probe | RSP2, RSP3 |
PH20
Unlike conventional touch-trigger measurement methods which rely on speeding up the motion of the CMM’s 3 axes to measure quickly, PH20 utilizes the head motion technology developed for
the multi-award winning REVO system to minimize the dynamic errors of the CMM at higher measurement speeds.
PH20’s unique ‘head touches’ allow measurement points to be taken by moving only the head, rather than the CMM structure. Points can be taken faster, and with improved accuracy and repeatability.
Furthermore, 5-axis motion eliminates time spent indexing the head. Together these speed increases typically result in a 3-fold improvement in throughput over conventional systems.
Head Type | 5-Axis Continuous |
Head Positions | Infinite |
Angular Tilt | ±115o |
Angular Rotation | Infinite |
Touch Probe | Integral |
Accessory Name
PORTABLE MEASURING ARMS
Take your CMM with you to any location with our portable measurement solutions. Our portable solutions allow you to perform rapid, battery-operated measurements where the operator can move freely around the part being measured.
Portable productivity, practicality, and flexibility
Equipped with Wi-Fi connectivity, complete battery operation, and a mobile workstation, the FREEDOM ARM gives you total mobility for your metrology needs.
With 6 axis and 7 axis portable measuring arms – for quality control, on-machine verification, reverse engineering or 3D modelling, the FREEDOM ARM series features three accuracy levels and several sizes in different portable arm configurations. These can be enhanced with manual-moving rotary tables, touch probes, and laser scanner options.
Designed for productivity, practicality, and flexibility, LK Metrology’s FREEDOM ARM performs challenging metrology tasks in almost any manufacturing environment.
- Go-to Measurement Where It Benefits You Most …
- Touch Probe
- 6-axis
- Laser Scanner & Touch Probe
- 7-axis
Freedom Arm Accessories
Interested in one of our products?
If you have any questions about our products or services, or would like to book a demonstration, don't hesitate to get in touch with our LK Metrology US office using this form.
